Conveyor Flat Belts

Dongji offers many various types of conveyor flat belting used in a wide range of industries such as logistics, packaging, textile, food, paper, wood, and more industrial sectors where reliable material handling and conveying solutions are required.

With nearly 2 decades of experience in the development and manufacture of industrial conveyor belt, we can manufacture our flat belts with different materials such as thermoplastic polyurethane (TPU), polyurethane (PUR), nitrile butadiene rubber (NBR) and polyamide (PA) to meet the specific needs of our customers. We also provide two proven belt joining methods, i.e. Thermofix and Flexproof, to make the flat belt endless and low noise.

As a global conveyor belt manufacturer, Dongji can provide both standard and custom conveyor belts that fit your particular applications.

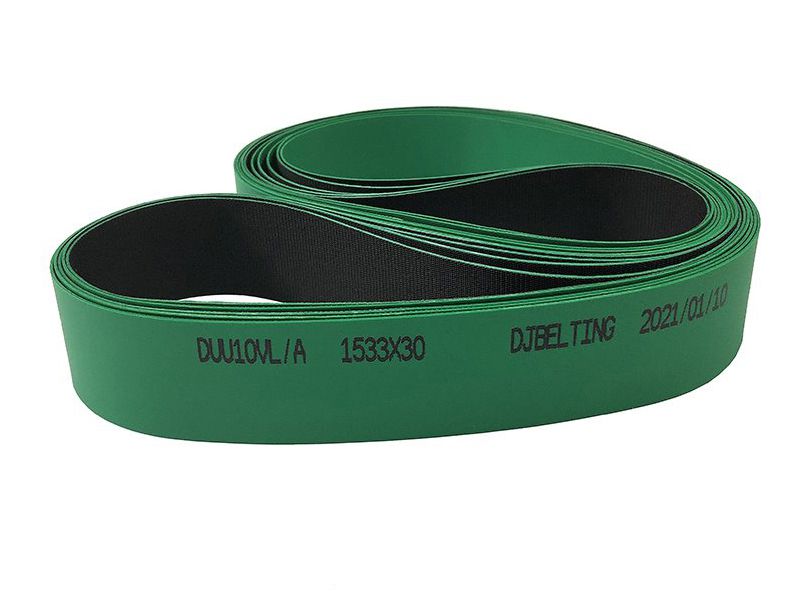

  • Elastic Conveyor Belt, DUU10VL/A
    Conveyor Flat Belts
    Inquiry
    • Material: 2 plies of thermoplastic polyurethane (TPU)
    • Construction: TPU / TPU
    • Surface structure (top /bottom): velvet / rough
    • Thickness: 1.0mm (±0.1mm)
    • Color: green /black
    • Min. pulley diameter: 10mm
    • Tensile force for 8% elongation (after running-in): 2.0 N/mm
    • Mass (belt weight): 1.0kg/m²
    • Working temperature: -20 to +60℃
    • Antistatic property: yes
    • Standard belt width: 500mm
    • Joining method: Thermofix & Flexproof (adhesive-free joint)
    • Applications: machine belting/ conveyor belting

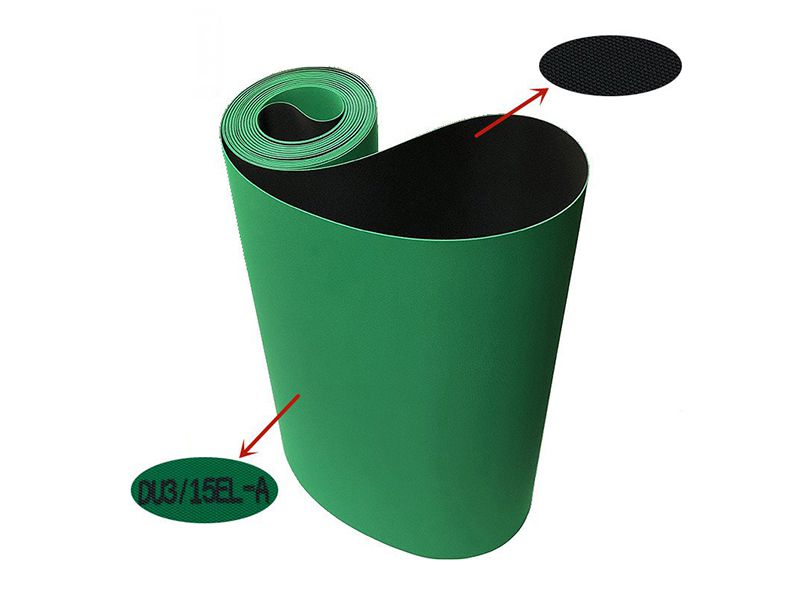

  • Conveyor Belt, DU3/15EL-A
    Conveyor Flat Belts
    Inquiry
    • Material: 2 plies of thermoplastic polyurethane (TPU)
    • Construction: TPU / TPU
    • Thickness: 1.5mm (±0.1mm)
    • Color: green / black
    • Min. pulley diameter: 15mm
    • Tensile force for 8% elongation: 3.0 N/mm
    • Mass (belt weight): approx.1.6kg/m²
    • Working temperature: -20 to +60℃
    • Antistatic property: yes
    • Standard belt width: 500mm
    • Joining method: Thermofix & Flexproof (adhesive-free joint)
    • Applications: logistics conveying system/cleaning machine/roller conveyor

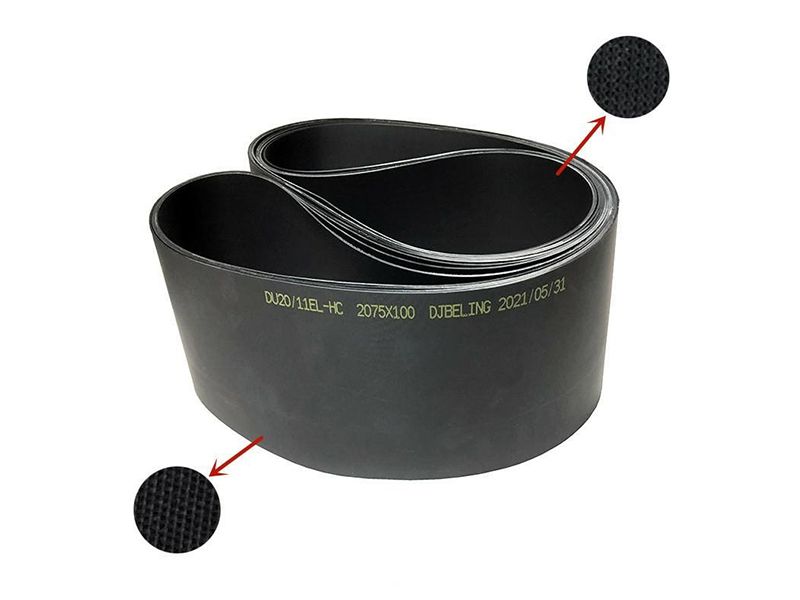

  • Elastic Conveyor Flat Belt (Pallet-type Conveyor Belt), DU20/11EL-HC
    Conveyor Flat Belts
    Inquiry
    • Material: 2 plies of polyurethane (PUR), 1 ply of thermoplastic polyurethane (TPU)
    • Construction: PUR/TPU/PUR
    • Thickness: 1.1mm (±0.1mm)
    • Color: black /black
    • Min. pulley diameter: 10mm
    • Tensile force for 8% elongation: 5.0 N/mm
    • Mass (belt weight): approx.1.2kg/m²
    • Working temperature: -20 to +70 ℃
    • Antistatic property: yes
    • Standard belt width: 500mm
    • Joining method: Thermofix & Flexproof
    • Packaging: woven bag & wooden case
    • Production length: 100-120 m

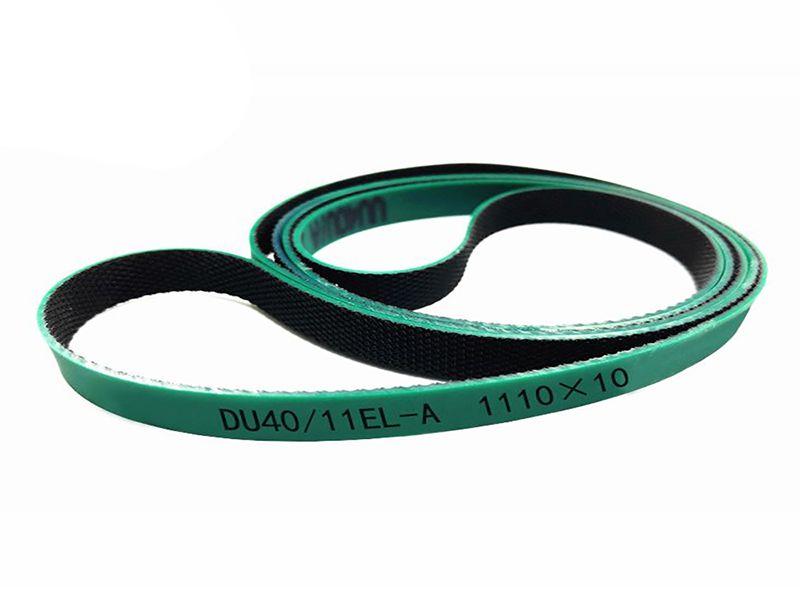

  • Elastic Conveyor Flat Belt, DU40/11EL-A
    Conveyor Flat Belts
    Inquiry
    • Material: 2 plies of thermoplastic polyurethane (TPU)
    • Construction: TPU/TPU
    • Surface structure: rough structure
    • Thickness: 1.1mm (±0.1mm)
    • Color: dark green /black
    • Min. pulley diameter: 14mm
    • Tensile force for 8% elongation (after running-in): 6.4 N/mm
    • Mass (belt weight): 1.2kg/m²
    • Working temperature: -20 to +60℃
    • Antistatic property: yes
    • Standard belt width: 500mm
    • Joining method: Thermofix & Flexproof (adhesive-free joint)

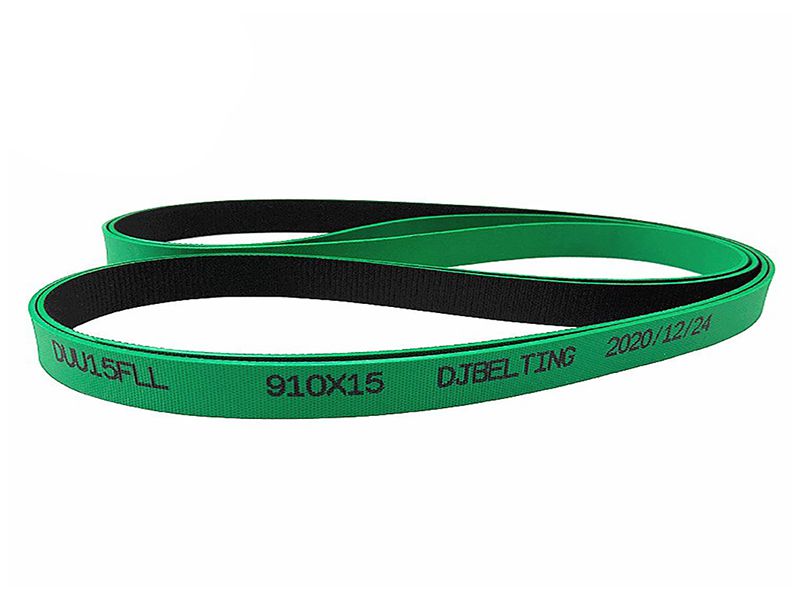

  • Elastic Conveyor Flat Belt, DUU15FLL
    Conveyor Flat Belts
    Inquiry
    • Material: 2 plies thermoplastic polyurethane (TPU)
    • Construction: TPU / TPU
    • Surface structure: rough structure
    • Thickness: 1.5 mm (±0.1mm)
    • Color: green / black
    • Min. pulley diameter: 10mm
    • Tensile force for 8% elongation (after running-in): 3.0 N/mm
    • Mass (belt weight): 1.8kg/m²
    • Working temperature: -20 to +60℃
    • Antistatic property: no
    • Standard belt width: 500mm
    • Joining method: Thermofix & Flexproof (adhesive-free joint)

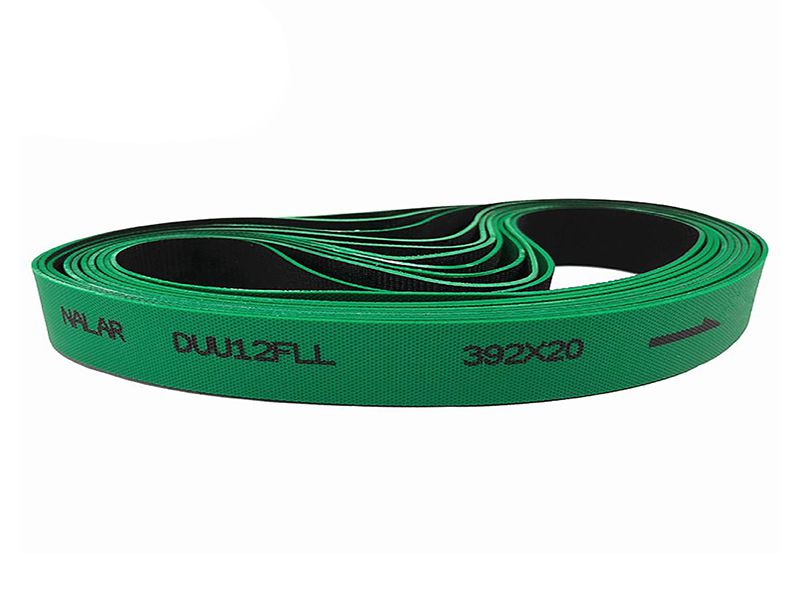

  • Elastic Conveyor Flat Belt, DUU12FLL
    Conveyor Flat Belts
    Inquiry
    • Material: 2 plies of thermoplastic polyurethane (TPU)
    • Construction: TPU / TPU
    • Surface structure: rough structure
    • Thickness: 1.2 mm (±0.1mm)
    • Color: green /black
    • Min. pulley diameter: 10mm
    • Tensile force for 8% elongation (after running-in): 2.5 N/mm
    • Mass (belt weight): 1.35kg/m²
    • Working temperature: -20 to +60 ℃
    • Antistatic property: no
    • Standard belt width: 500mm
    • Joining method: Thermofix & Flexproof (adhesive-free joint)

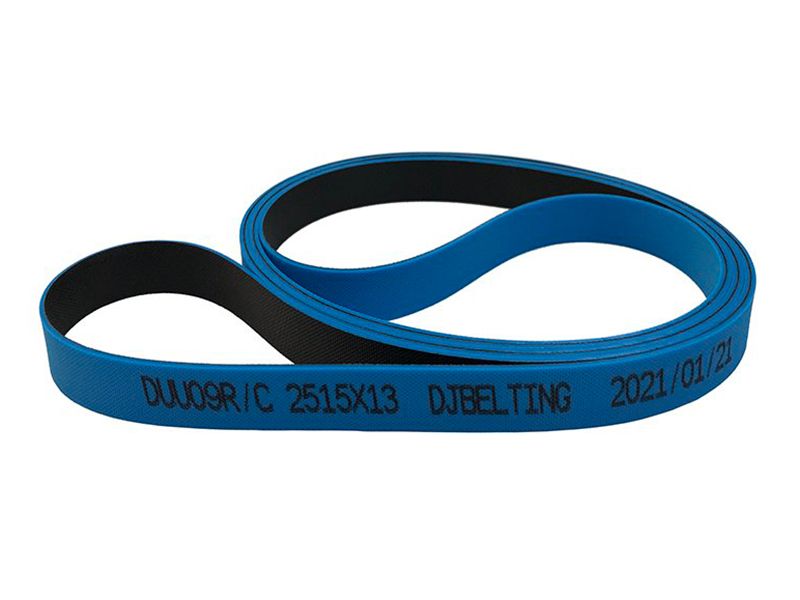

  • Elastic Conveyor Flat Belt, DUU09R/C
    Conveyor Flat Belts
    Inquiry
    • Material: 1 ply of thermoplastic polyurethane (TPU), 1 ply of polyurethane (PUR)
    • Construction: TPU / PUR
    • Surface finish: matte finish
    • Thickness: 1.3mm (±0.1mm)
    • Color: light blue /black
    • Min. pulley diameter: 15mm
    • Tensile force for 8% elongation (after running-in): 8.0 N/mm
    • Mass (belt weight): 1.6kg/m²
    • Working temperature: -20 to +60℃
    • Conductivity /antistatic property: yes
    • Standard belt width: 500mm
    • Joining method: Thermofix & Flexproof (adhesive-free joint)

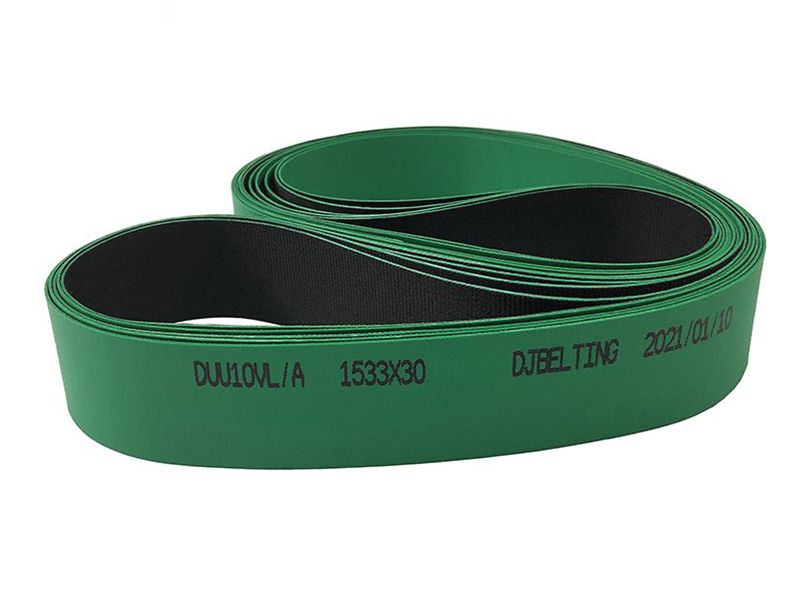

  • Elastic Conveyor Flat Belt, DUU10VL/A
    Conveyor Flat Belts
    Inquiry
    • Material: 2 plies of thermoplastic polyurethane (TPU)
    • Construction: TPU / TPU
    • Surface structure (top /bottom): velvet / rough
    • Thickness: 1.0mm (±0.1mm)
    • Color: green / black
    • Min. pulley diameter: 10mm
    • Tensile force for 8% elongation (after running-in): 2.0 N/mm
    • Mass (belt weight): 1.0kg/m²
    • Working temperature: -20 to +60℃
    • Antistatic property: yes
    • Standard belt width: 500mm
    • Joining method: Thermofix & Flexproof (adhesive-free joint)

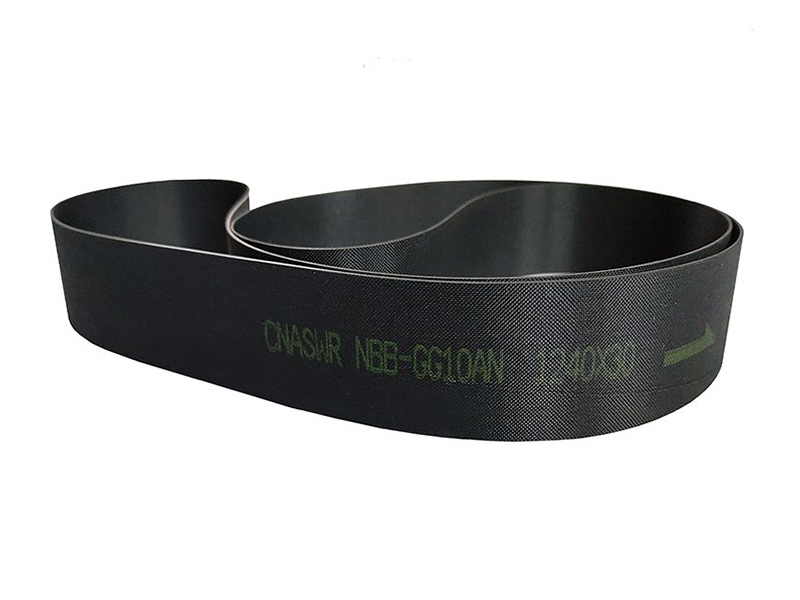

  • Extraline Conveyor Belt, CNASWR NBB-GG10AN
    Conveyor Flat Belts
    Inquiry
    • Material: 1 ply of nitrile rubber, 1 ply of nitrile butadiene rubber (NBR)
    • Construction: nitrile rubber / PA / NBR
    • Thickness: 1.0mm (±0.1mm)
    • Color: black /black
    • Min. pulley diameter: 15mm
    • Tensile force for 1% elongation (after running-in): 15.0 N/mm
    • Mass (belt weight): 1.2kg/m²
    • Working temperature: -20 to +150℃
    • Antistatic property: yes
    • Standard belt width: 500mm
    • Joining method: Thermofix
  • Elastic Conveyor Belt, DU20/11EL-HC
    Conveyor Flat Belts
    Inquiry
    • Material: 2 plies of polyurethane (PUR), 1 ply of thermoplastic polyurethane (TPU)
    • Construction: PUR / TPU / PUR
    • Thickness: 1.1mm (±0.1mm)
    • Color: black / black
    • Min. pulley diameter: 10mm
    • Tensile force for 8% elongation: 5.0 N/mm
    • Mass (belt weight): approx.1.2kg/m²
    • Working temperature: -20 to +70℃
    • Antistatic property: yes
    • Standard belt width: 500mm
    • Joining method: Thermofix& Flexproof
    • Packaging: woven bag & wooden case
    • Production length: 100-120m

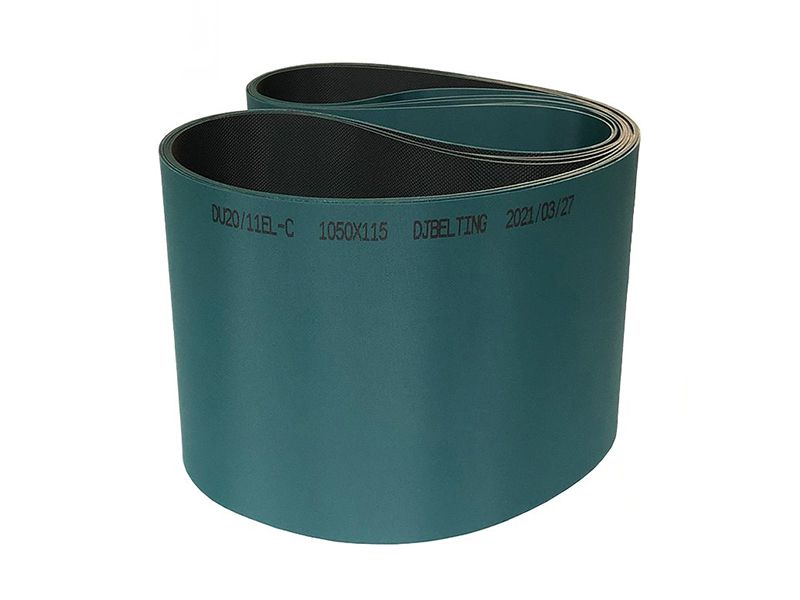

  • Elastic Conveyor Belt, DU20/11EL-C
    Conveyor Flat Belts
    Inquiry
    • Material: 1 ply of thermoplastic polyurethane (TPU), 1 ply of polyurethane (PUR)
    • Construction: TPU / PUR
    • Thickness: 1.1mm (±0.1mm)
    • Color: blackish green / black
    • Min. pulley diameter: 15mm
    • Tensile force for 8% elongation: 3.2 N/mm
    • Mass (belt weight): approx.1.2kg/m²
    • Working temperature: -20 to +70℃
    • Antistatic property: yes
    • Standard belt width: 500mm
    • Joining method: Thermofix & Flexproof (adhesive-free joint)

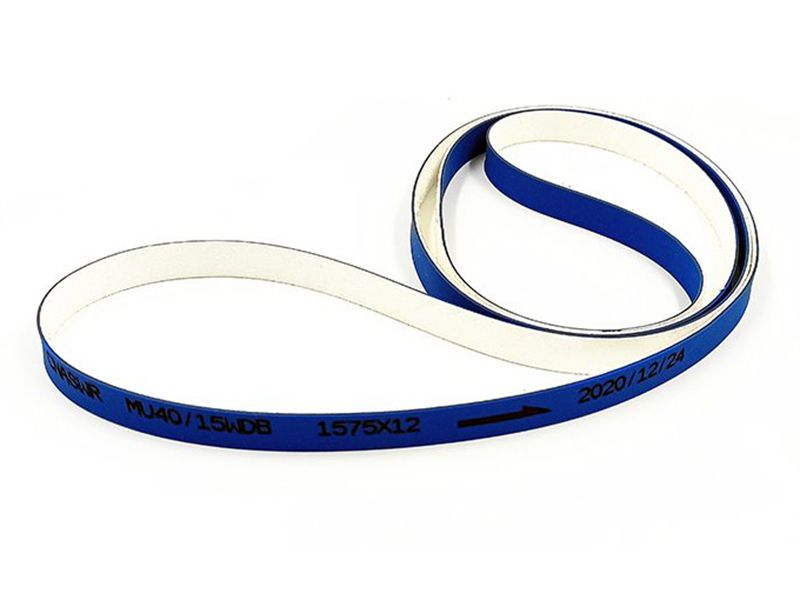

  • Tangent Flat Belt, MU40/15WDB
    Conveyor Flat Belts
    Inquiry
    • Material: 1 ply of suede leather, 1 ply of thermoplastic polyurethane (TPU)
    • Construction: suede leather / TPU
    • Thickness: 1.5mm (±0.1mm)
    • Color: white / blue
    • Min. pulley diameter: 10mm
    • Tensile force for 1% elongation (after running-in): 2.0 N/mm
    • Mass (belt weight): 1.6kg/m²
    • Working temperature: -20 to +80℃
    • Antistatic property: yes
    • Standard belt width: 500mm
    • Joining method: Thermofix & Flexproof

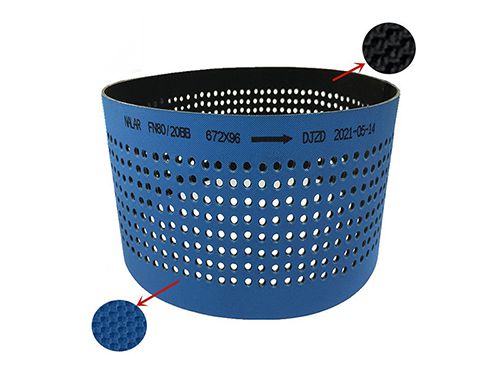

    1. Polyamide Plate Based Flat Belt
    2. Polyamide Plate Based Flat BeltPolyamide plate based flat belts are high-speed flat belts constructed with nylon core (polyamide) and covered with nitrile butadiene rubber (NBR), leather and fiber cloth. The thickness of our polyamide flat belts is available in a range of 0.8-6mm.Read More
