Belting for Semiconductor Industry

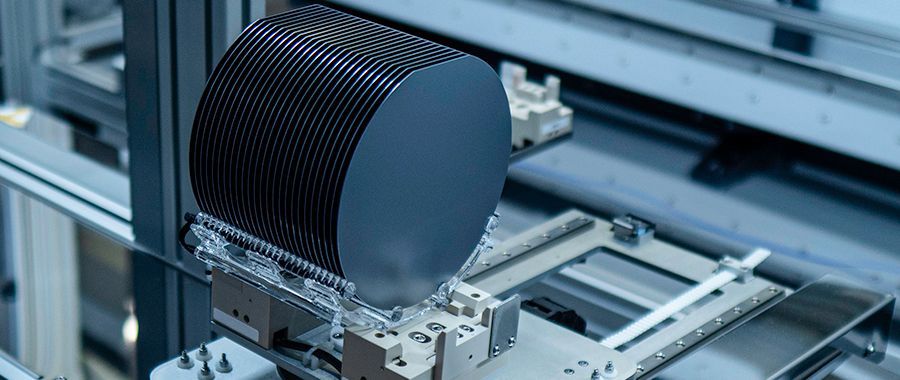

Semiconductors have extensive applications across a multitude of industry sectors such as integrated circuits, consumer electronics, communication systems, PV power generation, lighting and power conversion. In order to accommodate harsh industrial environment in the semiconductor industry, DONGJI has developed the world's first NBB and EN series burr-free and antistatic polyamide plate based flat belts.
Features of Dongji's Burr-Free and Antistatic Polyamide Plate Based Flat Belt
- No burrs on both edges;
- In full compliance with ESD control standard, surface resistance 1×105-7Ω;
- Good high temperature resistance, can continuously run under working temperature up to 150℃;
- Higher tensile strength and lower elongation;
- Excellent flexibility and adaptability;
- Better physical properties than conventional polyamide plate based belt;
- Bonding strength between layers is greater than 3.0N/mm;
Applications
Cleanroom and conveyor systems for the electronics industry
Applicable Equipment
- SMT machine
- PCB printing machine
- Solder paste inspection machine (SPI machine)
- PCB separator
- SMT pick and place machine
- Automated optical inspection machine (AOI machine)
- PCB stacking loader
- PCB link conveyor
- SMT shuttle conveyor
- SMT buffer conveyor
- PCB storage machine
- PCB cleaning machine
- Pin insertion machine
- SMT dispenser
- Weighing machine
- SMT screw machine
- and other related equipment
- Machine Belting
- Elastic Conveyor Flat Belt
Machine Belting
DU40/11EL-A
- Material: 2 plies of thermoplastic polyurethane (TPU)
- Construction: TPU/TPU
- Surface structure: rough structure
- Thickness: 1.1mm (±0.1mm)
DUU10VL/A
- Material: 2 plies of thermoplastic polyurethane (TPU)
- Construction: TPU / TPU
- Surface structure (top /bottom): velvet / rough
- Thickness: 1.0mm (±0.1mm)
DUU09R/C
- Material: 1 ply of thermoplastic polyurethane (TPU), 1 ply of polyurethane (PUR)
- Construction: TPU / PUR
- Surface finish: matte finish
- Thickness: 1.3mm (±0.1mm)
DUU15FLL
- Material: 2 plies of thermoplastic polyurethane (TPU)
- Construction: TPU / TPU
- Surface structure: rough structure
- Thickness: 1.5mm (±0.1mm)
DUU12FLL
- Material: 2 plies of thermoplastic polyurethane (TPU)
- Construction: TPU/TPU
- Surface structure: rough structure
- hickness: 1.2mm (±0.1mm)
Elastic Conveyor Flat Belt
DU40/11EL-A
- Material: 2 plies of thermoplastic polyurethane (TPU)
- Construction: TPU/TPU
- Surface structure: rough structure
- Thickness: 1.1mm (±0.1mm)
DUU12FLL
- Material: 2 plies of thermoplastic polyurethane (TPU)
- Construction: TPU/TPU
- Surface structure: rough structure
- Thickness: 1.2mm (±0.1mm)
DUU15FLL
- Material: 2 plies thermoplastic polyurethane (TPU)
- Construction: TPU / TPU
- Surface structure: rough structure
- Thickness: 1.5 mm (±0.1mm)
DUU10VL/A
- Material: 2 plies of thermoplastic polyurethane (TPU)
- Construction: TPU / TPU
- Surface structure (top /bottom): velvet / rough
- Thickness: 1.0mm (±0.1mm)
DUU09R/C
- Material: 1 ply of thermoplastic polyurethane (TPU), 1 ply of polyurethane (PUR)
- Construction: TPU / PUR
- Surface finish: matte finish
- Thickness: 1.3mm (±0.1mm)
DU20/11EL-HC
- Material: 2 plies of polyurethane (PUR), 1 ply of thermoplastic polyurethane (TPU)
- Construction: PUR/TPU/PUR
- Thickness: 1.1mm (±0.1mm)
- Color: black /black
Dongji owns professional large-scale manufacturing plant and warehouse for polyurethane flat belts and polyamide power transmission belts. Ingenious manufacturing to the highest international standards has been central to Dongji's strategy since its inception. We are the first domestic industrial belt manufacturer using thermoplastic polyurethane (TPU) and nanomaterials to produce high-performance conveyor belts. The features of produced flat belts include energy saving, burr-free edge, antistatic property, high conductivity and good resilience, as well as outstanding resistance to abrasion, bending, chemicals, oil, and high or low temperatures, enabling the industrial belts versatile enough to accommodate the individual production process of diverse automatic manufacturing equipment.
