Polyamide Plate Based Flat Belt

Polyamide plate based flat belts are high-speed flat belts constructed with nylon core (polyamide) and covered with nitrile butadiene rubber (NBR), leather and fiber cloth. The thickness of our polyamide flat belts is available in a range of 0.8-6mm.

Features
In comparison with conventional canvas transmission belts and V-belts, polyamide flat belts are featured by strong tensile force, low noise level, high efficiency, good resistance to fatigue, abrasion and bending, as well as long lifespan.

Applications
Polyamide plate based flat belts are ideally used in equipment having compact transmission mechanism, high line speed and large speed ratio, such as cigarette rolling machines, paper machinery, textile machinery, SMT equipment, PCB conveyors and handling equipment, etc.

Polyamide Plate Based Flat Belt
NALAR F40/13S
NALAR F40/10GB

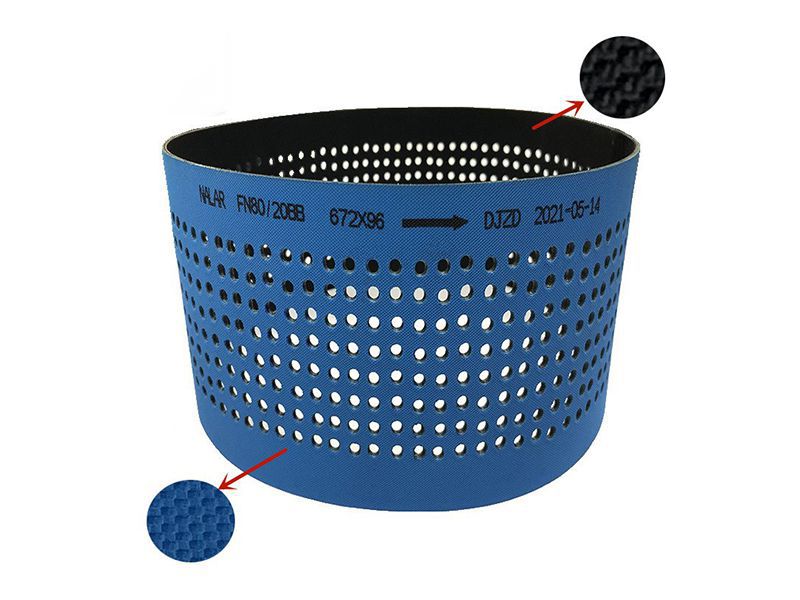

  • Polyamide Plate Based Conveyor Flat Belt, NALAR FN80/20BB
    Polyamide Plate Based Flat Belt
    Inquiry
    • Material: 2 plies of nitrile butadiene rubber (NBR), 1 ply of polyamide (PA)
    • Construction: NBR / PA / NBR
    • Thickness: 2.0mm (±0.1mm)
    • Color: blue / black
    • Min. pulley diameter: 50mm
    • Tensile force for 1% elongation: 8.0 N/mm
    • Mass (belt weight): approx.2.3kg/m²
    • Working temperature: -20 to +100℃
    • Antistatic property: yes
    • Standard belt width: 500mm
    • Joining method: Thermofix

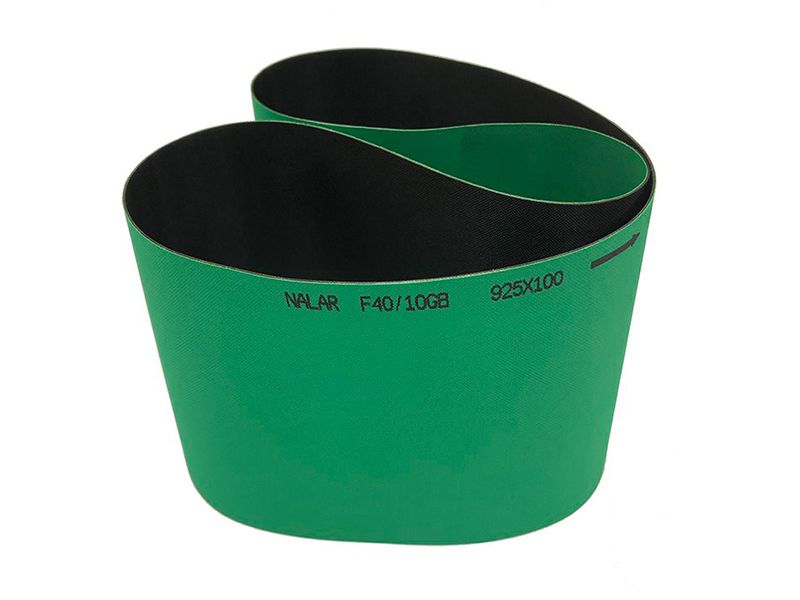

  • Polyamide Plate Based Flat Belt, NALAR F40/10GB
    Polyamide Plate Based Flat Belt
    Inquiry
    • Material: 2 plies of nitrile butadiene rubber (NBR), 1 ply of polyamide (PA)
    • Construction: NBR / PA / NBR
    • Thickness: 1.0mm (±0.1mm)
    • Color: grass green /black
    • Min. pulley diameter: 20mm
    • Tensile force for 1% elongation (after running-in): 3.0 N/mm
    • Mass (belt weight): 1.1kg/m²
    • Working temperature: -20 to +100℃
    • Antistatic property: no
    • Standard belt width: 500mm
    • Joining method: Thermofix

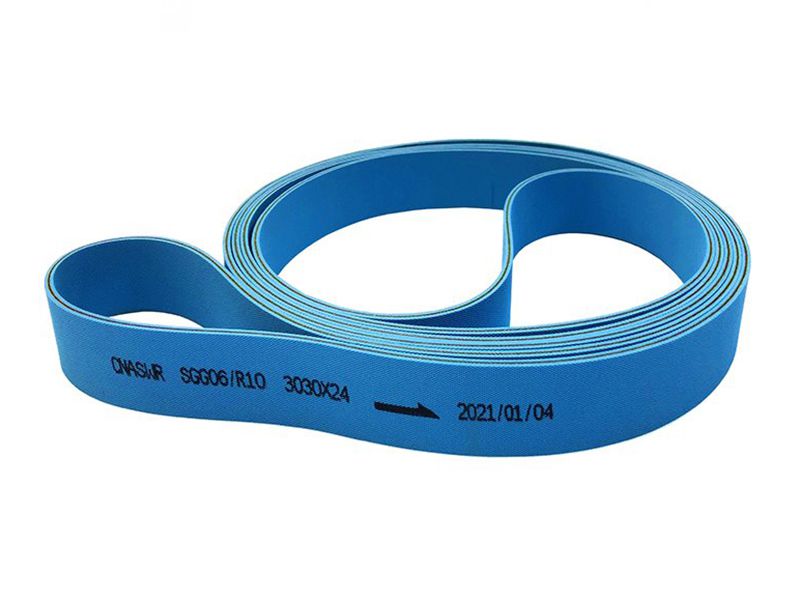

  • Polyamide Plate Based Flat Belt (Conveyor Flat Belt), SGG06/R10
    Polyamide Plate Based Flat Belt
    Inquiry
    • Material: 2 plies of nitrile butadiene rubber (NBR), 1 ply of polyamide (PA)
    • Construction: NBR / PA / NBR
    • Thickness: 3.0mm (±0.1mm)
    • Color: blue /blue
    • Min. pulley diameter: 30mm
    • Tensile force for 1% elongation (after running-in): 8.0 N/mm
    • Mass (belt weight): 3.5kg/m²
    • Working temperature: -20 to +80℃
    • Antistatic property: no
    • Standard belt width: 500mm
    • Joining method: Thermofix

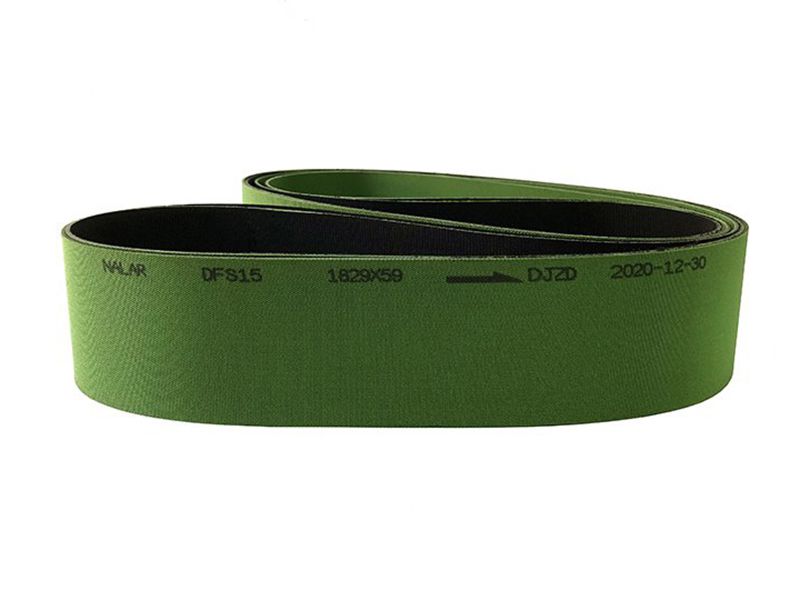

  • Polyamide Plate Based Flat Belt, NALAR DFS15
    Polyamide Plate Based Flat Belt
    Inquiry
    • Material: 2 plies of fiber cloth, 1 ply of polyamide (PA)
    • Construction: fiber cloth / PA / fiber cloth
    • Thickness: 1.5mm (±0.1mm)
    • Color: green /black
    • Min. pulley diameter: 40mm
    • Tensile force for 1% elongation (after running-in): 8.0 N/mm
    • Mass (belt weight): 1.3kg/m²
    • Working temperature: -20 to +100 ℃
    • Antistatic property: yes
    • Standard belt width: 500mm
    • Joining method: Thermofix

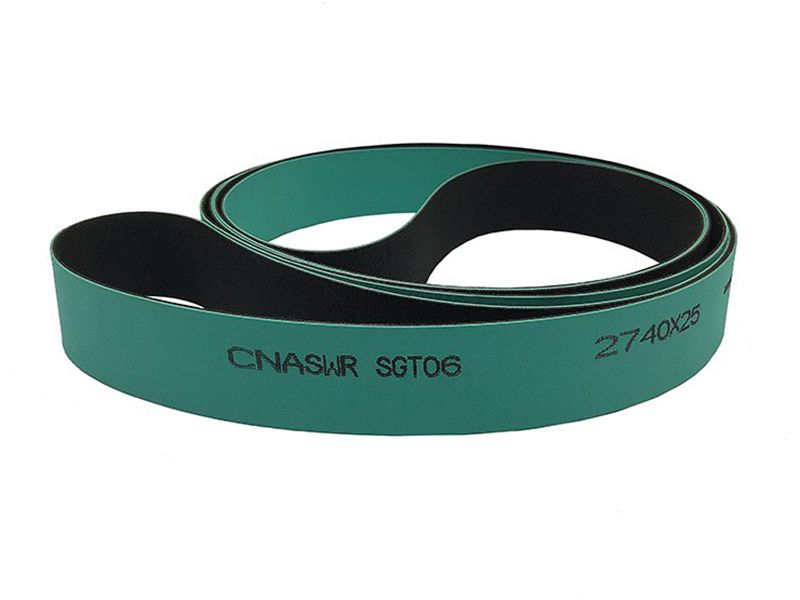

  • Polyamide Plate Based Flat Belt, CNASWR SGT06
    Polyamide Plate Based Flat Belt
    Inquiry
    • Material: 1 ply of nitrile butadiene rubber (NBR), 1 ply of polyamide (PA) and 1 ply of starched cloth
    • Construction: NBR / PA / starched cloth
    • Thickness: 1.5mm (±0.1mm)
    • Color: vivid green / black
    • Min. pulley diameter: 15mm
    • Tensile force for 1% elongation (after running-in): 4.0 N/mm
    • Mass (belt weight): 1.6kg/m²
    • Working temperature: -20 to +100℃
    • Antistatic property: yes
    • Standard belt width: 500mm
    • Joining method: Thermofix
