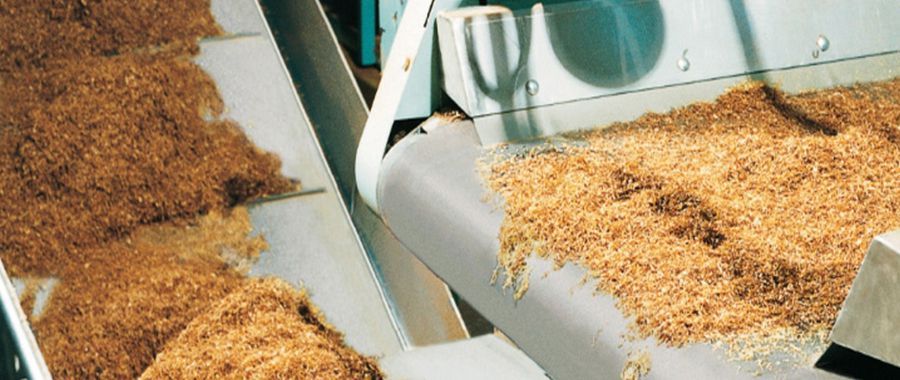

Weighing Conveyor Belt
Weighing conveyor is a dynamic belt weighing system used to weigh bulk goods that are moving along the conveyor belt. It can verify if the weight of products is within design tolerances, and automatically alerts and rejects products under or over the correct weight, or automatically classifies and sorts products by preset weight zones.
Dongji offers belting solutions for your conveyor systems, assisting you in ensuring high level of measurement accuracy.
- Weighing Conveyor Belt
- Machine Belting
- TPU Transmission Belt
- Tangential Belt
Weighing Conveyor Belt
DB Series Belt (Black / Black)
- Material: 1 ply of suede leather, 1 ply of thermoplastic polyurethane (TPU)
- Construction: suede leather / TPU
- Thickness: 1.5mm (±0.1mm)
- Color: white / blue
UEU8N-G Series Belt
- Material: 2 plies of thermoplastic polyurethane (TPU), 1 ply of polyethylene terephthalate (PET)
- Construction: TPU / PET / TPU
- Thickness: 1.5mm (±0.1mm)
- Color: dark green / dark green
Machine Belting

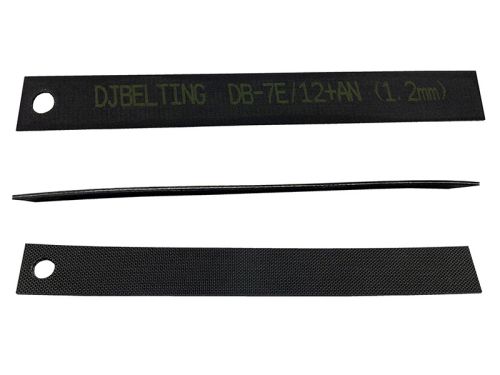

DB-7E 12+AN
- Material (top /bottom): TPU / TPU
- Surface structure (top /bottom): rough structure / fine structure
- Material of tension member: PET
- Color (top /bottom): black / black

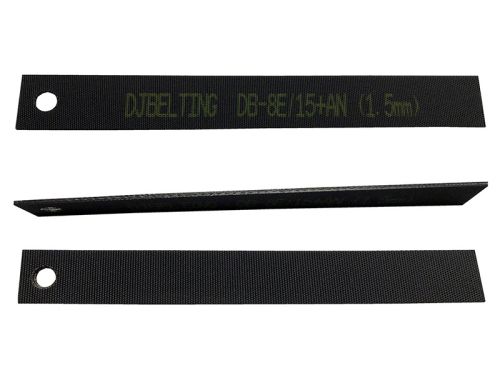

DB-8E 15+AN
- Material (top /bottom): TPU / TPU
- Surface structure (top /bottom): rough structure / rough structure
- Material of tension member: PET
- Color (top /bottom): black / black

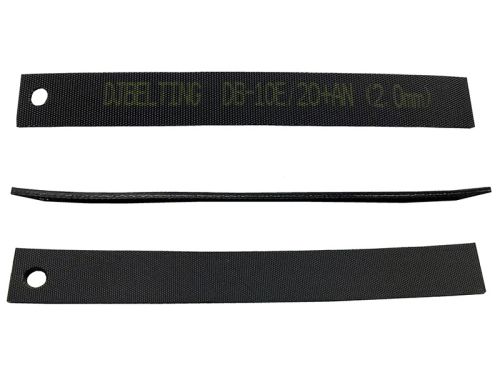

DB-10E 20+AN
- Material (top /bottom): TPU / TPU
- Surface structure (top /bottom): rough structure / rough structure
- Material of tension member: PET
- Color (top /bottom): black / black
E1-HC
- Material (top /bottom): NBR elastomer / NBR elastomer
- Surface structure (top /bottom): fine structure / fine structure
- Material of tension member: polyester fabric
- Color (top /bottom): black / black

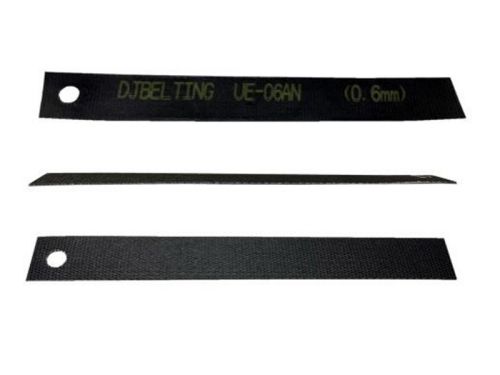

UE-06AN
- Material (top /bottom): soak PUR+PET / TPU
- Surface finish (top /bottom): fabric texture / fabric texture
- Material of tension member: polyester fabric
- Color (top /bottom): black / black
TPU Transmission Belt
DB-7E 12+AN
- Material (top /bottom): TPU / TPU
- Surface structure (top /bottom): rough structure / fine structure
- Material of tension member: PET
- Color (top /bottom): black / black
DB-8E 15+AN
- Material (top /bottom): TPU / TPU
- Surface structure (top /bottom): rough structure / rough structure
- Material of tension member: PET
- Color (top /bottom): black / black
DB-10E 20+AN
- Material (top /bottom): TPU / TPU
- Surface structure (top /bottom): rough structure / rough structure
- Material of tension member: PET
- Color (top /bottom): black / black
UE-06AN
- Material (top /bottom): soak PUR+PET / TPU
- Surface finish (top /bottom): fabric texture / fabric texture
- Material of tension member: polyester fabric
- Color (top /bottom): black / black
Tangential Belt
DB-10E 20+AN
- Material (top /bottom): TPU / TPU
- Surface structure (top /bottom): rough structure / rough structure
- Material of tension member: PET
- Color (top /bottom): black / black
Dongji owns professional large-scale manufacturing plant and warehouse for polyurethane flat belts and polyamide power transmission belts. Ingenious manufacturing to the highest international standards has been central to Dongji's strategy since its inception. We are the first domestic industrial belt manufacturer using thermoplastic polyurethane (TPU) and nanomaterials to produce high-performance conveyor belts. The features of produced flat belts include energy saving, burr-free edge, antistatic property, high conductivity and good resilience, as well as outstanding resistance to abrasion, bending, chemicals, oil, and high or low temperatures, enabling the industrial belts versatile enough to accommodate the individual production process of diverse automatic manufacturing equipment.
