Machine Tapes and Belts
Machine tapes and belts are a central component for many manufacturing operations, allowing for precisely and effortlessly manipulate products through conveying, accelerating, slowing down and positioning, therefore satisfying individual production demands.
At Dongji, you can find a comprehensive range of machine tapes and belts that are featured by energy saving, burr-free edge, antistatic property, high conductivity and good resilience, as well as outstanding resistance to abrasion, bending, chemicals, oil, and high or low temperatures. Our machine belts are fabricated using proven joining method, Thermofix and Flexproof, to give high flexibility of belt length. The reliable features of our machine tapes and belts enable it suitable for use in electronics manufacturing equipment, semiconductor fabrication equipment, PV production equipment, food processing equipment, pharmaceutical machinery, PPE manufacturing equipment, textile equipment, paper converting machines, printing machines, packaging machinery, woodworking machinery and many other manufacturing equipment.
-

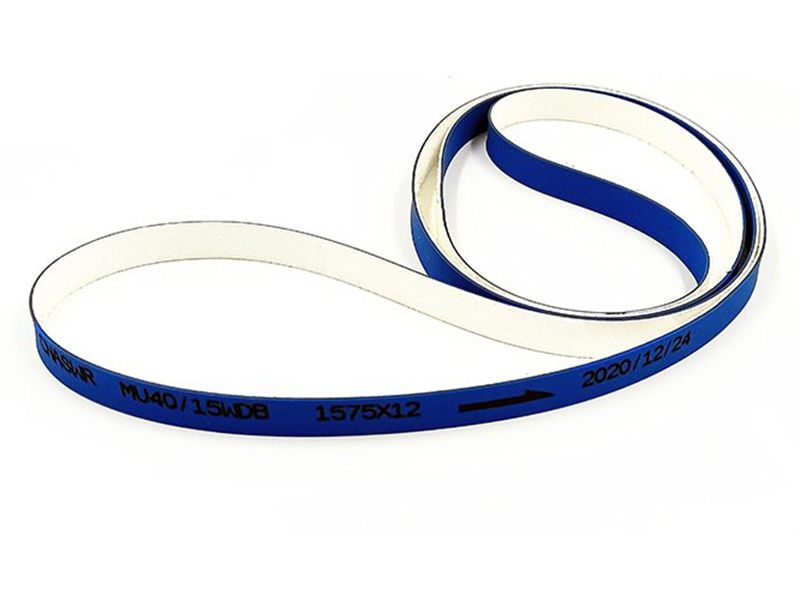

Elastic Machine Tape (Tangent Flat Belt), MU40/15WDB
Inquiry- Material: 1 ply of suede leather, 1 ply of thermoplastic polyurethane (TPU)
- Construction: suede leather / TPU
- Thickness: 1.5mm (±0.1mm)
- Color: white / blue
- Min. pulley diameter: 10mm
- Tensile force for 1% elongation (after running-in): 2.0 N/mm
- Mass (belt weight): 1.6kg/m²
- Working temperature: -20 to +100℃
- Antistatic property: yes
- Standard belt width: 500mm
- Joining method: Thermofix & Flexproof
-

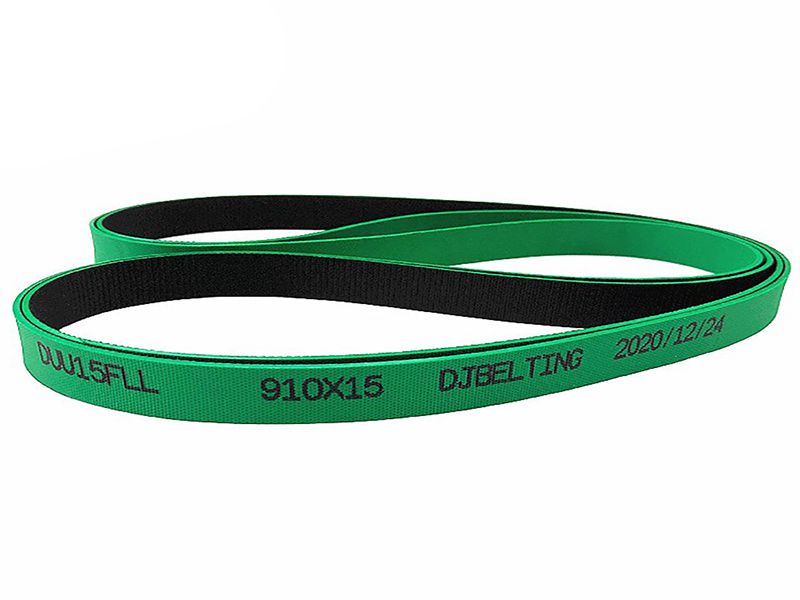

Elastic Machine Tape, DUU15FLL
Inquiry- Material: 2 plies of thermoplastic polyurethane (TPU)
- Construction: TPU / TPU
- Surface structure: rough structure
- Thickness: 1.5mm (±0.1mm)
- Color: green / black
- Min. pulley diameter: 10mm
- Tensile force for 8% elongation after running-in: 3.0N/mm
- Mass (belt weight): 1.8kg/m²
- Working temperature: -20 to +60℃
- Antistatic property: no
- Standard belt width: 500mm
- Joining method: Thermofix & Flexproof (adhesive-free joint)
-

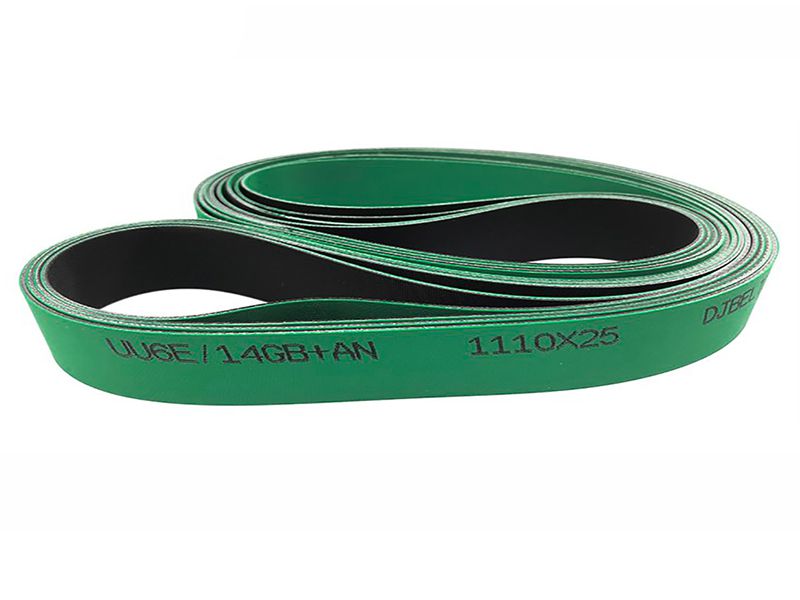

Machine Tape, UU6E/14GB+AN
Inquiry- Material: 2 plies of thermoplastic polyurethane (TPU), 1 ply of polyethylene terephthalate (PET)
- Construction: TPU / PET / TPU
- Surface finish: double-sided matte finish
- Thickness: 1.4mm (±0.1mm)
- Color: green / black
- Min. pulley diameter: 18mm
- Tensile force for 1% elongation (after running-in): 6.0 N/mm
- Mass (belt weight): 1.8kg/m²
- Working temperature: -20 to +80℃
- Antistatic property: yes
- Standard belt width: 500mm
- Joining method: Thermofix & Flexproof (adhesive-free joint)
-

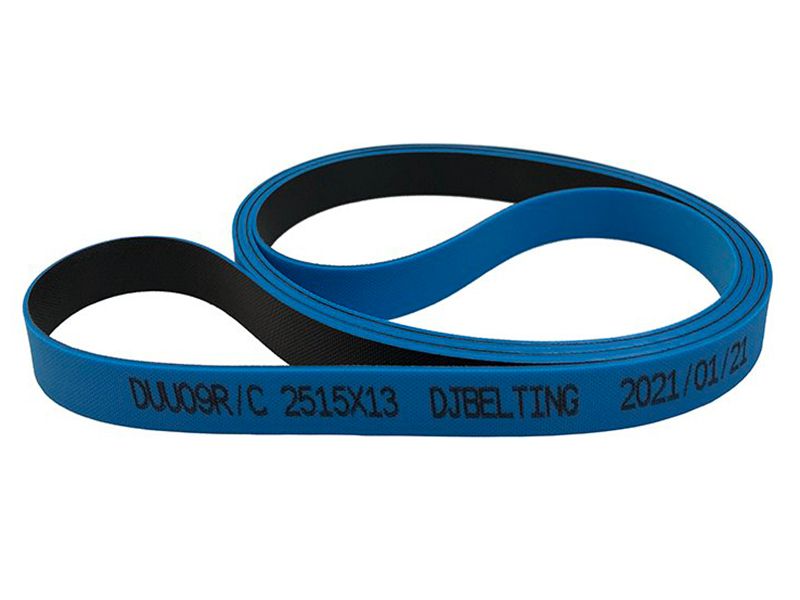

Elastic Conveyor Tape, DUU09R/C
Inquiry- Material: 1 ply of thermoplastic polyurethane (TPU), 1 ply of polyurethane (PUR)
- Construction: TPU / PUR
- Surface finish: matte finish
- Thickness: 1.3mm (±0.1mm)
- Color: light blue / black
- Min. pulley diameter: 15mm
- Tensile force for 8% elongation (after running-in): 8.0 N/mm
- Mass (belt weight): 1.6kg/m²
- Working temperature: -20 to +60 ℃
- Conductivity /antistatic property: yes
- Standard belt width: 500mm
- Joining method: Thermofix & Flexproof (adhesive-free joint)
-

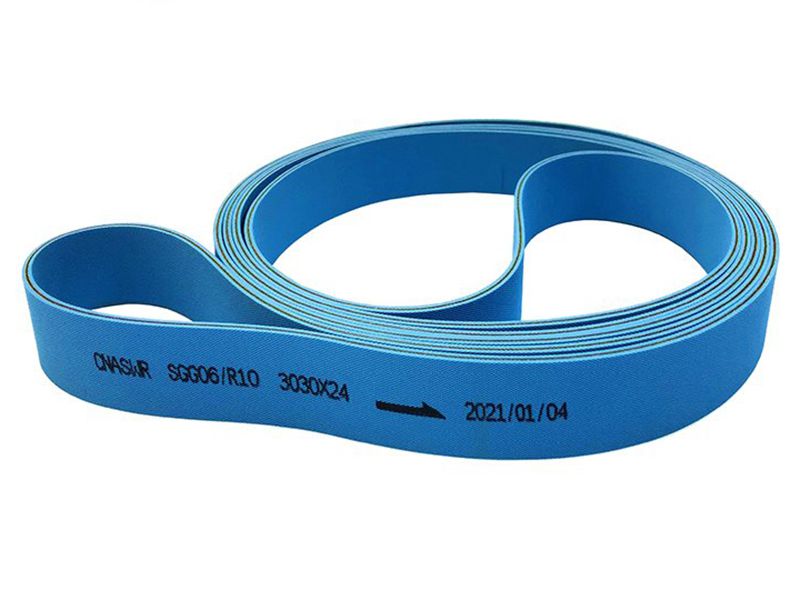

Machine Belting, SGG06/R10
Inquiry- Material: 2 plies of nitrile butadiene rubber (NBR)
- Construction: NBR / PA / NBR
- Thickness: 3.0mm (±0.1mm)
- Color: blue / blue
- Min. pulley diameter: 30mm
- Tensile force for 1% elongation (after running-in): 8.0 N/mm
- Mass (belt weight): 3.5kg/m²
- Working temperature: -20 to +80℃
- Antistatic property: no
- Standard belt width: 500mm
- Joining method: Thermofix
-

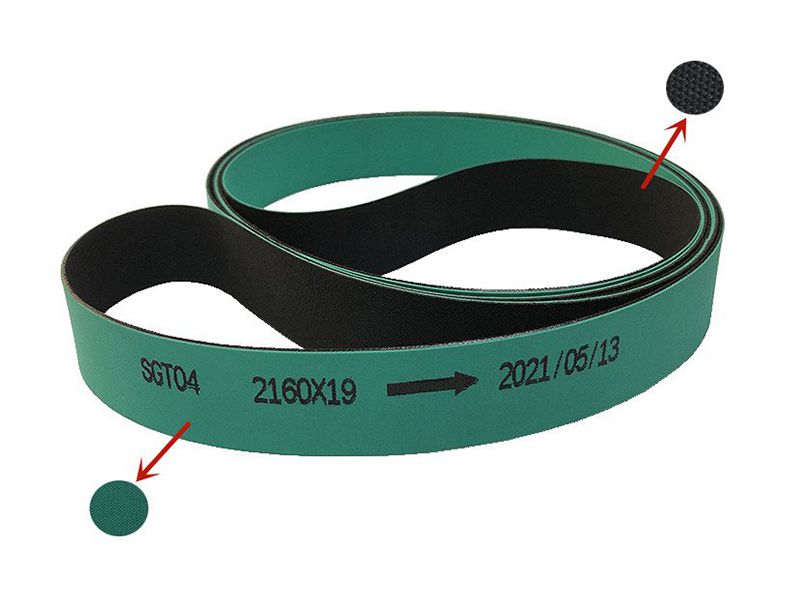

Machine Tape, CNASWR SGT04
Inquiry- Material: 1 ply of rubber, 1 ply of polyamide (PA) and 1 ply of sized fabric
- Construction: rubber / PA / sized fabric
- Thickness: 1.2mm (±0.1mm)
- Color: green / black
- Min. pulley diameter: 12mm
- Tensile force for 1% elongation: 6.0 N/mm
- Mass (belt weight): approx.1.3kg/m²
- Working temperature: -20 to +100℃
- Antistatic property: yes
- Standard belt width: 500mm
- Joining method: Thermofix
-

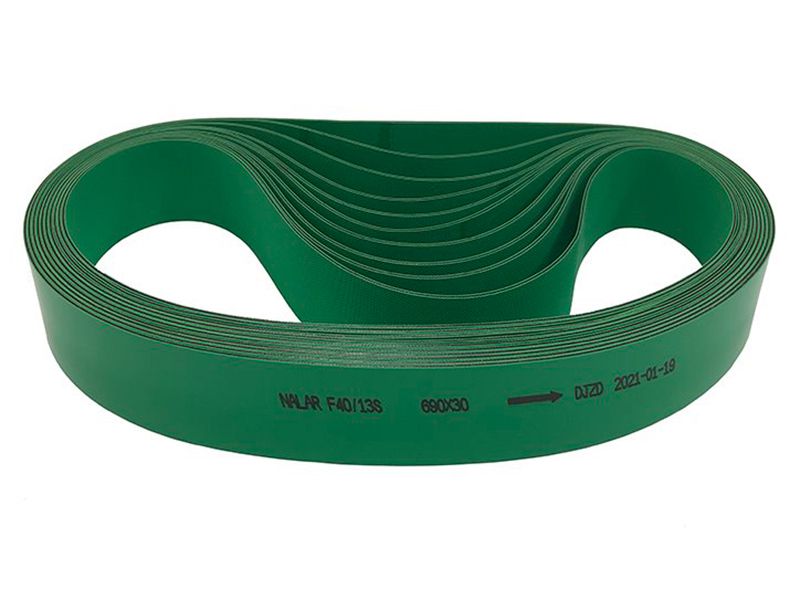

Machine Belt, Polyamide Plate Based Flat Belt, NALAR F40/13S
Inquiry- Material: 2 plies of nitrile butadiene rubber (NBR), 1 ply of polyamide (PA)
- Construction: NBR / PA / NBR
- Surface finish: matte finish
- Thickness: 1.3mm (±0.1mm)
- Color: grass green / grass green
- Min. pulley diameter: 20mm
- Tensile force for 1% elongation (after running-in): 4.0 N/mm
- Mass (belt weight): 1.4kg/m²
- Working temperature: -20 to +100℃
- Antistatic property: no
- Standard belt width: 500mm
- Joining method: Thermofix
-

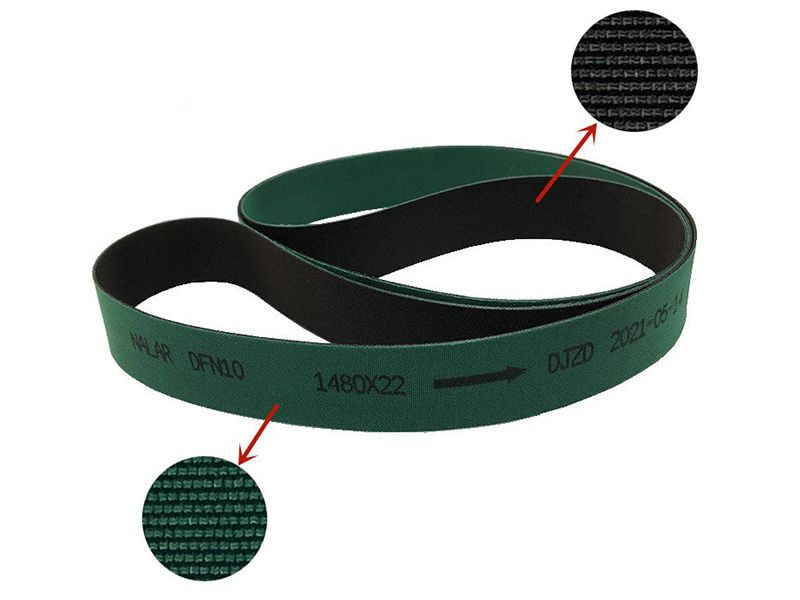

Machine Belting, NALAR DFN10
Inquiry- Material: 2 plies of fiber, 1 ply of polyamide (PA)
- Construction: fiber / PA / fiber
- Thickness: 1.0mm (±0.1mm)
- Color: blackish green / black
- Min. pulley diameter: 20mm
- Tensile force for 8% elongation: 2.0 N/mm
- Mass (belt weight): approx.0.8kg/m²
- Working temperature: -20 to +100℃
- Antistatic property: no
- Standard belt width: 500mm
- Joining method: Thermofix
-

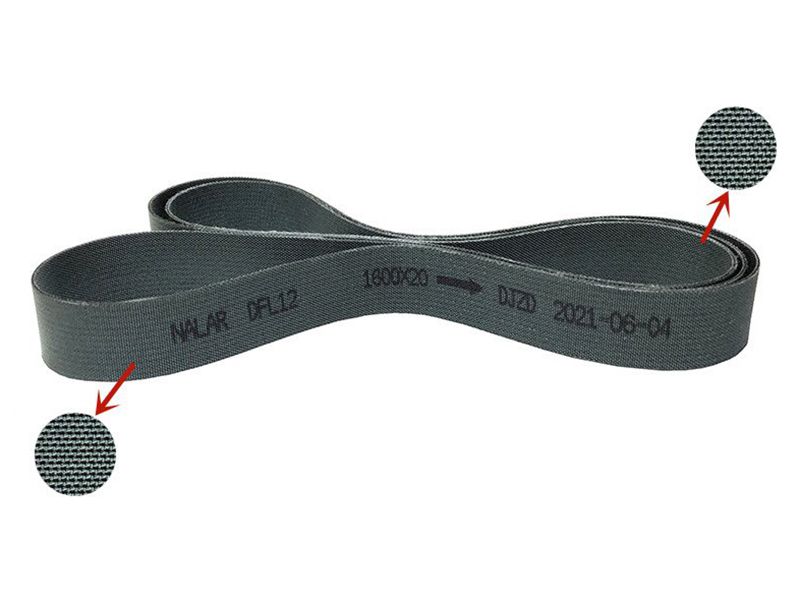

Machine Tape, NALAR DFL12
Inquiry- Material: 2 plies of fiber, 1 ply of polyamide (PA)
- Construction: fiber / PA / fiber
- Thickness: 1.2mm (±0.1mm)
- Color: grey /grey
- Min. pulley diameter: 20mm
- Tensile force for 1% elongation: 4.0 N/mm
- Mass (belt weight): approx.1.1kg/m²
- Working temperature: -20 to +100 ℃
- Antistatic property: no
- Standard belt width: 500mm
- Joining method: Thermofix
-
Multifunctional Extraline Flat Belt, CNASWR DK-07AN
Inquiry- Material: 2 plies of soaking fabric, 1 ply of polyamide (PA)
- Construction: soaking fabric / PA / soaking fabric
- Thickness: 1.5mm (±0.1mm)
- Color: black / black
- Min. pulley diameter: 40mm
- Tensile force for 1% elongation: 7.0 N/mm
- Mass (belt weight): approx.1.5kg/m²
- Working temperature: -30 to +150℃
- Antistatic property: yes
- Standard belt width: 500mm
- Joining method: Thermofix
-
Extraline Machine Tape, CNASWR NBB-GG20AN
Inquiry- Material: 1 ply of nitrile butadiene rubber (NBR), 1 ply of rubber
- Construction: NBR / rubber
- Thickness: 2.0 mm (±0.1mm)
- Color: black / black
- Min. pulley diameter: 50mm
- Tensile force for 1% elongation: 10.0 N/mm
- Mass (belt weight): approx.2.4 kg/m²
- Working temperature: -20 to +150℃
- Antistatic property: yes
- Standard belt width: 500mm
- Joining method: Thermofix
- Production length: 100-120m
-

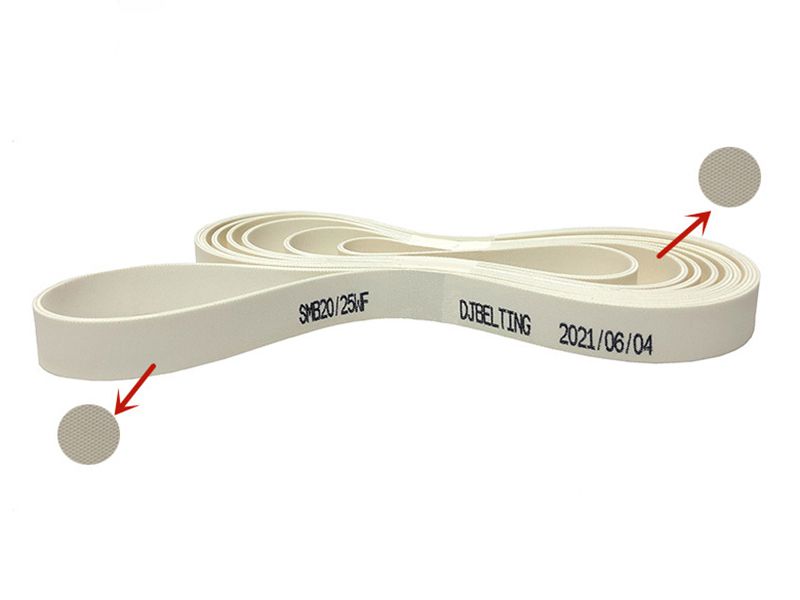

TPU Machine Tape, SMB20/25WF
Inquiry- Material: 2 plies of thermoplastic polyurethane (TPU), 1 ply of polyethylene terephthalate (PET)
- Construction: TPU / PET / TPU
- Thickness: 2.5mm (±0.1mm)
- Color: milky white / milky white
- Min. pulley diameter: 25mm (Flexproof), 40mm (Thermofix)
- Tensile force for 1% elongation: 20 N/mm
- Mass (belt weight): approx. 2.0kg/m²
- Working temperature: -20 to +70℃
- Antistatic property: yes
- Standard belt width: 500mm
- Joining method: Thermofix & Flexproof (adhesive-free joint)
- Production length: 100-120m
-

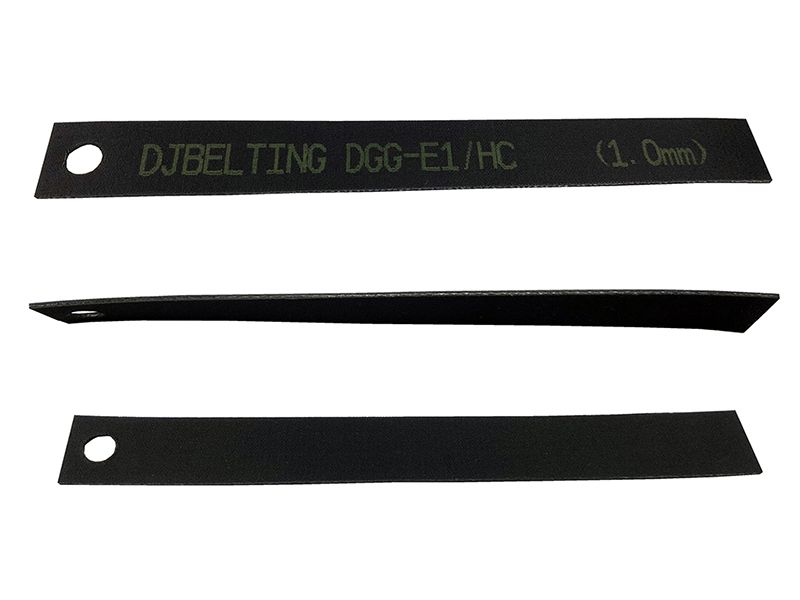

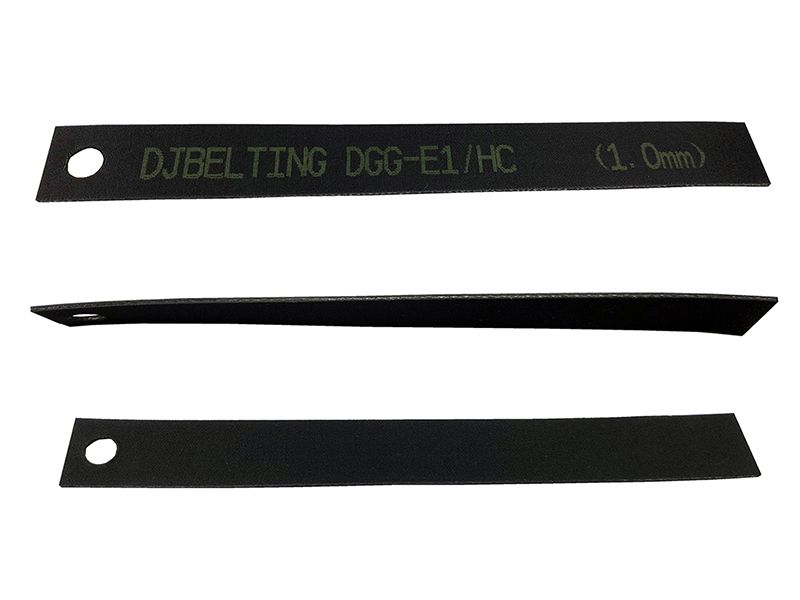

Machine Tape, E1-HC
Inquiry- Belt thickness: approx.1.0mm (±0.1mm)
- Material (top /bottom): NBR elastomer / NBR elastomer
- Surface structure (top /bottom): fine structure / fine structure
- Material of tension member: polyester fabric
- Color (top /bottom): black / black
- Min. pulley diameter (mm): 10mm (Flexproof), 15mm (Thermofix)
- Tensile force for 1% elongation: 8.0 N/mm
- Recommended elongation: 0.3-2.0%
- Mass (belt weight): approx.1.3kg/m²
- Working temperature: -20 to +60℃
- Antistatic property: yes
- Standard belt width: 500mm
- Joining method: Thermofix & Flexproof (adhesive-free joint)
- Applications: conveyor belt for electronic equipment, conveyer belt scale, comber belt (textile industry)
-

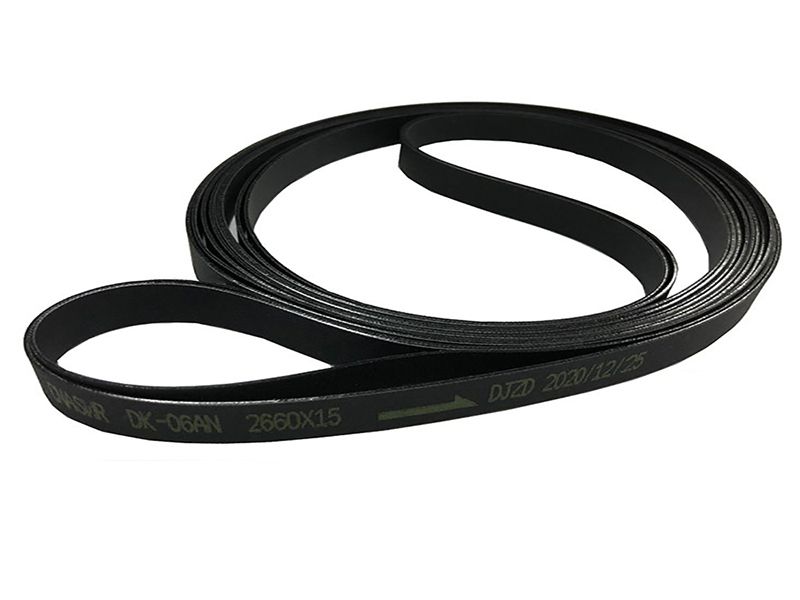

Multifunctional Extraline Machine Tape, CNASWR DK-06AN
Inquiry- Material: 2 plies of soaking fabric, 1 ply of polyamide (PA)
- Construction: soaking fabric / PA / soaking fabric
- Thickness: 1.2mm (±0.1mm)
- Color: black / black
- Min. pulley diameter: 30mm
- Tensile force for 1% elongation: 6.0 N/mm
- Mass (belt weight): approx.1.2kg/m²
- Working temperature: -30 to +150℃
- Antistatic property: yes
- Standard belt width: 500mm
- Joining method: Thermofix
-

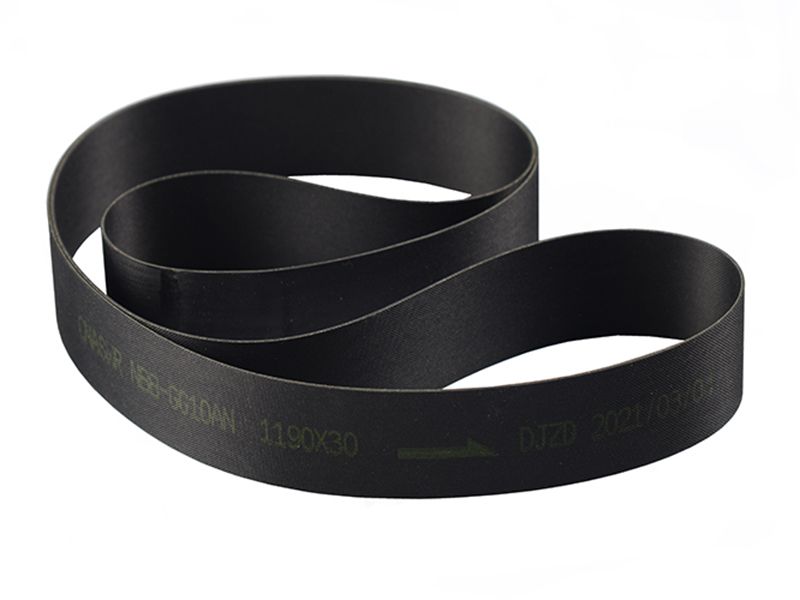

Machine Belting, CNASWR NBB-GG10AN
Inquiry- Material: 1 ply of nitrile rubber, 1 ply of nitrile butadiene rubber (NBR)
- Construction: nitrile rubber / PA / NBR
- Thickness: 1.0mm (±0.1mm)
- Color: black /black
- Min. pulley diameter: 15mm
- Tensile force for 1% elongation (after running-in): 15.0 N/mm
- Mass (belt weight): 1.2kg/m²
- Working temperature: -20 to +150℃
- Antistatic property: yes
- Standard belt width: 500mm
- Joining method: Thermofix
-

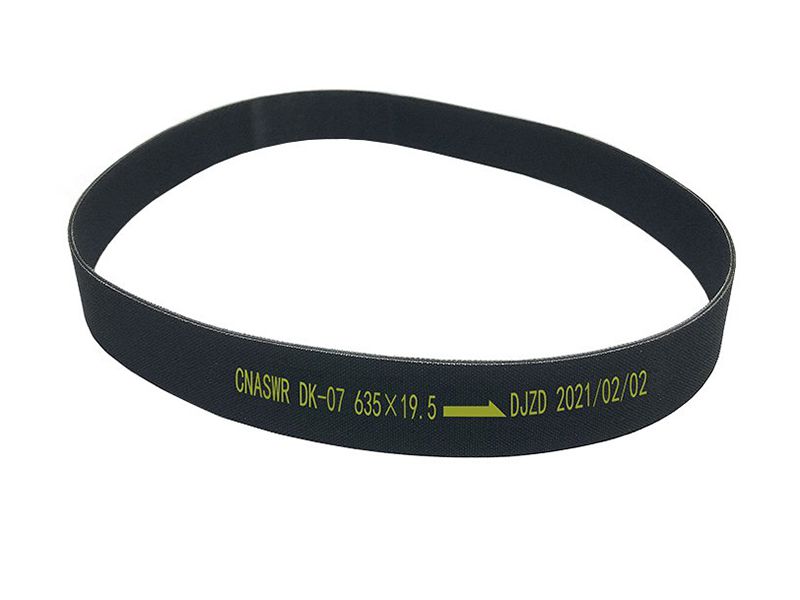

Machine Tape, CNASWR DK-07AN
Inquiry- Material: 2 plies of soaking fabric, 1 ply of polyamide (PA)
- Construction: soaking fabric / PA / soaking fabric
- Thickness: 1.5mm (±0.1mm)
- Color: black /black
- Min. pulley diameter: 40mm
- Tensile force for 1% elongation: 7.0 N/mm
- Mass (belt weight): approx.1.5kg/m²
- Working temperature: -30 to +150℃
- Antistatic property: yes
- Standard belt width: 500mm
- Joining method: Thermofix
-

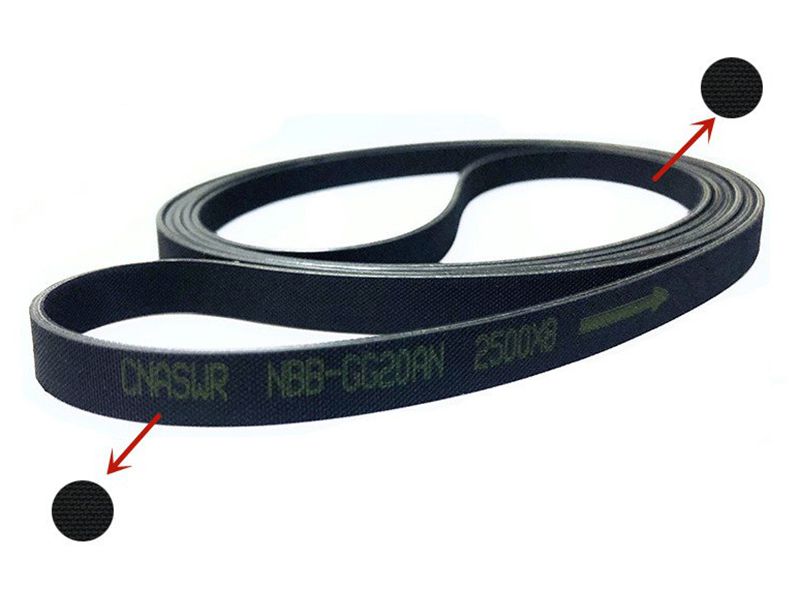

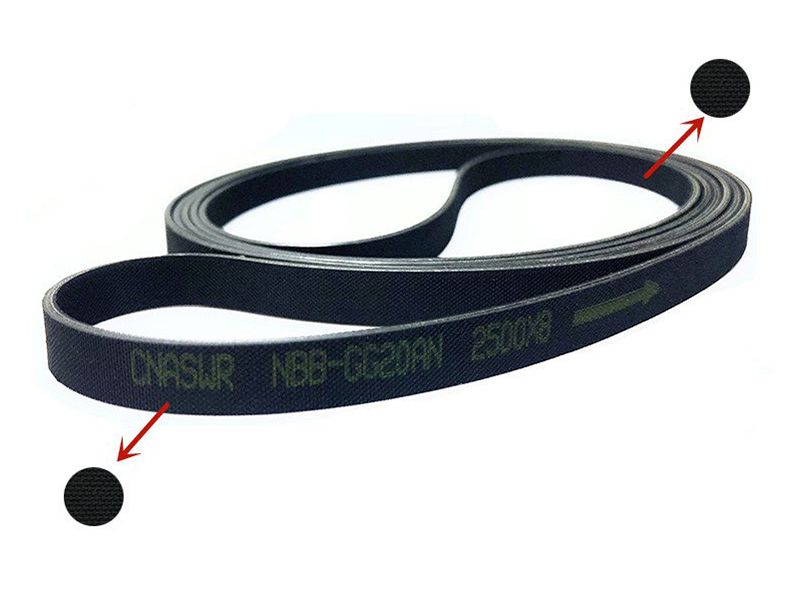

Machine Belt (Flat Belt), CNASWR NBB-GG20AN
Inquiry- Material: 1 ply of nitrile rubber, 1 ply of nitrile butadiene rubber (NBR)
- Thickness: 2.0mm (±0.1mm)
- Color: black /black
- Min. pulley diameter: 50mm
- Tensile force for 1% elongation: 8.0 N/mm
- Mass (belt weight): approx.2.4kg/m²
- Working temperature: -20 to +100℃
- Antistatic property: yes
- Standard belt width: 500mm
- Joining method: Thermofix
- Production length: 100-120m
-
Machine Tape (Extraline Belting), MU40/15WDB
Inquiry- Construction: 1 ply of suede leather, 1 ply of thermoplastic polyurethane (TPU)
- Thickness: 1.5 mm (±0.1mm)
- Color: white /blue
- Min. pulley diameter: 10mm
- Tensile force for 1% elongation (after running-in): 2.0 N/mm
- Mass (belt weight): 1.6kg/m²
- Working temperature: -20 to +80℃
- Antistatic property: yes
- Standard belt width: 500mm
- Joining method: Thermofix & Flexproof
-

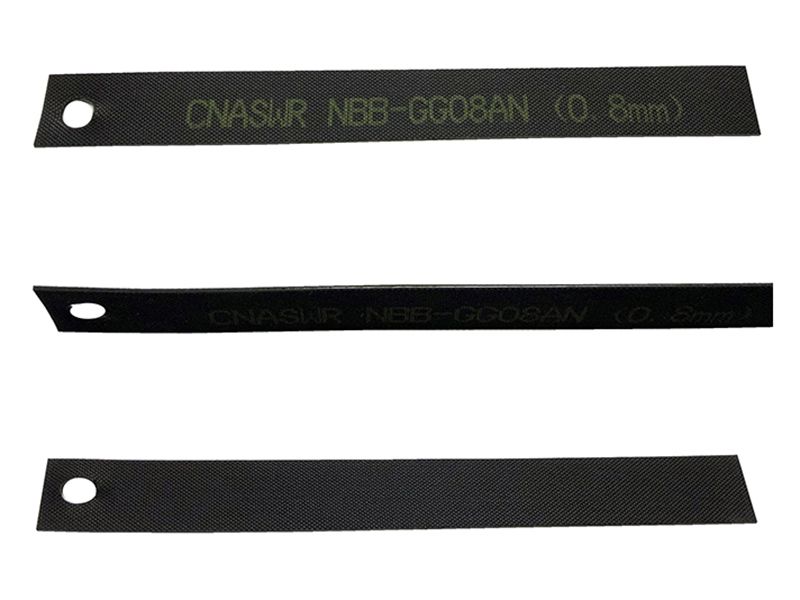

Machine Tape, NGG-GG08AN
Inquiry- Brand: UUITA
- Thickness: approx.0.8mm (±0.1mm)
- Material (top/bottom): rubber elastomer / rubber elastomer (no fabric cloth in between)
- Surface finish (top /bottom): rough structure / rough structure
- Material of tension member: polyamide foil
- Color (top /bottom): black / black
- Antistatic property: yes
- Min. pulley diameter:10 mm
- Tensile force for 1% elongation: 2.0 N/mm
- Recommended elongation: 2.0-4.0%
- Mass (belt weight): approx.1.2kg/m²
- Working temperature: -20 to +100℃
- Standard belt width: 500mm
- Joining method: Thermofix
- Industry: electronics, clean room
- Application: machine belting/special purpose flat belt
-

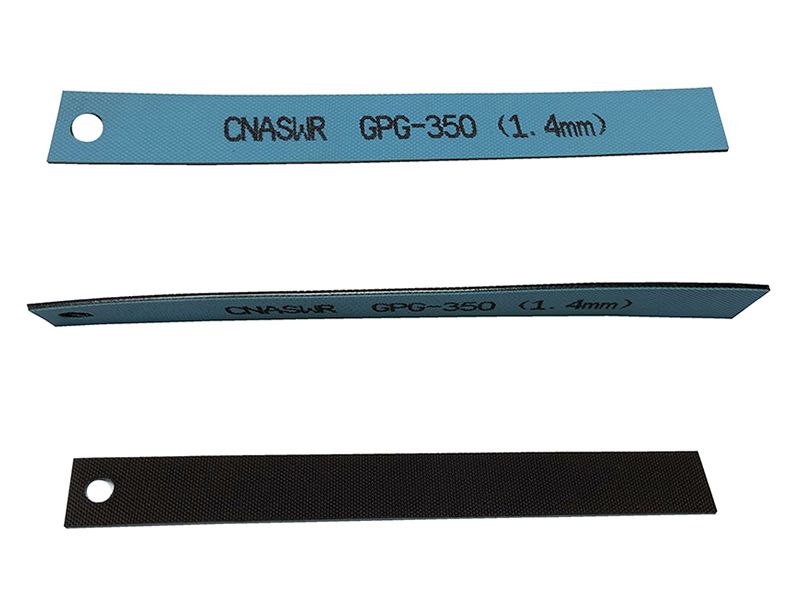

Machine Belting, GPG-350
Inquiry- Brand: UUITA
- Thickness: approx.1.4mm (±0.1mm)
- Material (top /bottom): NBR elastomer / NBR elastomer
- Surface finish (top /bottom): rough structure / rough structure
- Material of tension member: polyamide foil
- Color (top /bottom): black / blue
- Antistatic property: yes
- Min. pulley diameter: 20mm
- Tensile force for 1% elongation: 3.5 N/mm
- Recommended elongation: 2.0-3.0%
- Mass (belt weight): approx.1.6kg/m²
- Working temperature: -20 to +100℃
- Standard belt width: 500mm
- Joining method: Thermofix
- Industry: electronics, printing & packaging, paper
- Application: machine belting / polyamide plate based flat belt
-

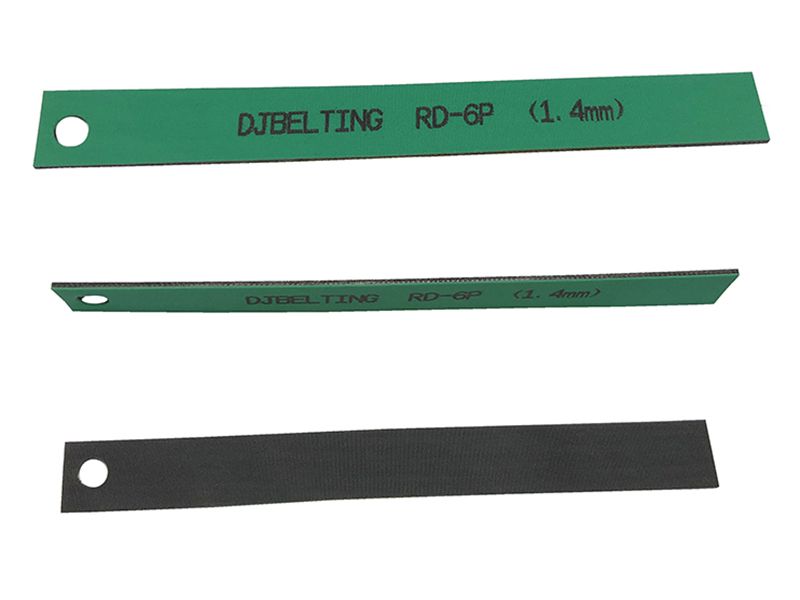

Machine Belting, RD-6P
Inquiry- Brand: UUITA
- Thickness: approx.1.4mm (±0.1mm)
- Material (top /bottom): thermoplastic elastomer / NBR elastomer
- Surface finish (top /bottom): fine structure / fine structure
- Material of tension member: polyamide fabric
- Color (top /bottom): black / green
- Min. pulley diameter:25mm (Flexproof), 40mm (Thermofix)
- Tensile force for 1% elongation: 6.0 N/mm
- Mass (belt weight): approx.1.5kg/m²
- Working temperature: -30 to +80℃
- Antistatic property: yes
- Standard belt width: 500mm
- Joining method: Thermofix & Flexproof (adhesive-free joint)
- Industry: electronics, printing & packaging, paper
- Application: machine belting / paper processing belt

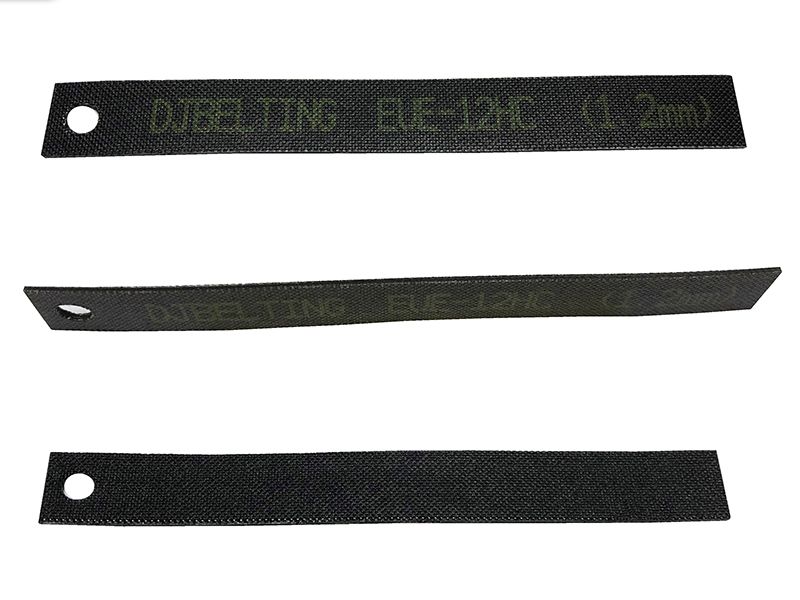

Machine Belting, EUE-12HC
Inquiry- Brand: UUITA
- Thickness: approx.1.2mm (±0.1mm)
- Material (top /bottom): impregnated fabric+PET / PET+impregnated fabric
- Surface finish (top /bottom): fabric texture / fabric texture
- Material of tension member: polyester fabric
- olor (top /bottom): black / black
- Min. pulley diameter: 15mm (Flexproof), 30mm (Thermofix)
- Tensile force for 1% elongation: 6.0 N/mm
- Recommended elongation: 0.3-2.0%
- Mass (belt weight): approx.1.2kg/m²
- Working temperature: -30 to +80℃
- Conductivity /antistatic property: yes
- Standard belt width: 500mm
- Joining method: Flexproof/ Thermofix/Mechanical Joint
- Industry: electronics, printing & packaging, paper
- Application: machine belting / special purpose conveyor belt / electrical discharge belt

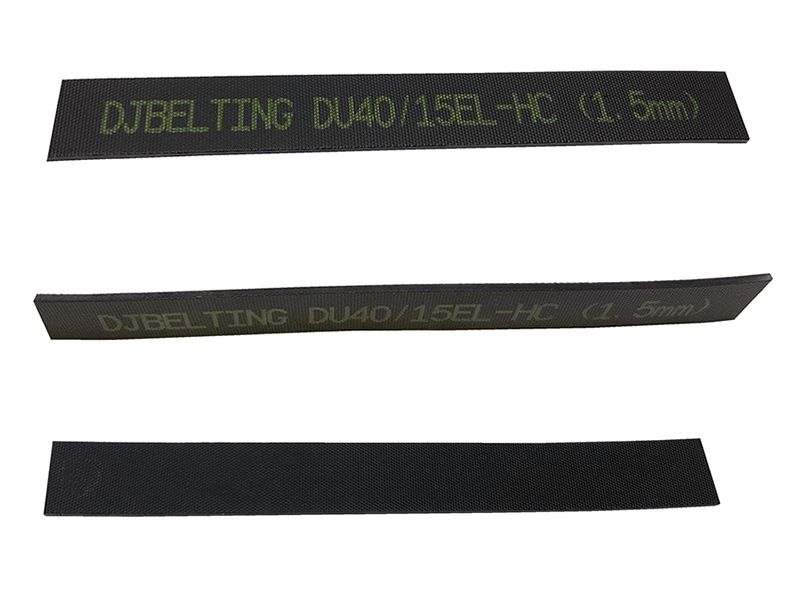

Elastic Machine Belting, DU40/15EL-HC
Inquiry- Brand: UUITA
- Thickness: approx.1.5mm (±0.1mm)
- Material (top /bottom): PUR / PUR
- Surface finish (top /bottom): rough structure / rough structure
- Material of tension member: TPU
- Color (top /bottom): black / black
- Min. pulley diameter: 15mm
- Tensile force for 8% elongation: 8.0 N/mm
- Recommended elongation: 3.0-8.0%
- Mass (belt weight): approx.1.6kg/m²
- Working temperature: -20 to +70℃
- Conductivity /antistatic property: yes
- Standard belt width: 500mm
- Joining method: Thermofix & Flexproof (adhesive-free joint)
- Industry: photovoltaic, solar energy, electronics, semiconductor, printing and packaging, paper, postal
- Application: machine belting/elastic conveyor flat belt

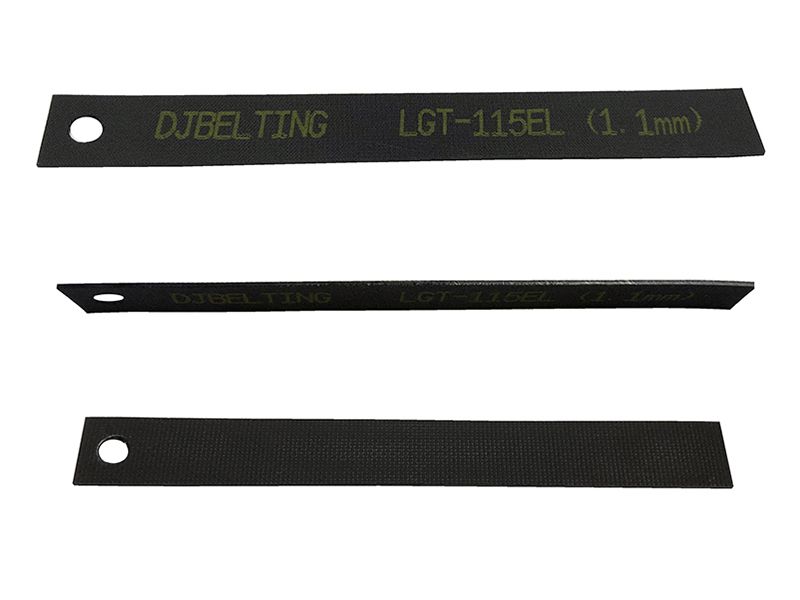

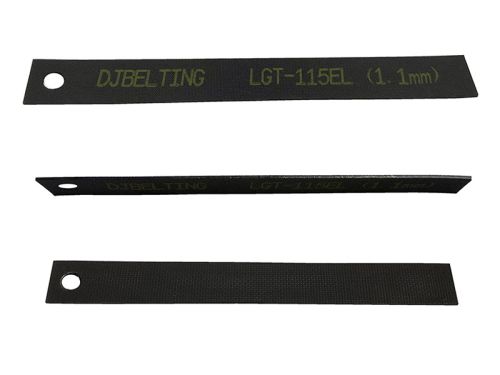

Elastic Machine Belting, LGT-115EL
Inquiry- Brand: UUITA
- Thickness: approx.1.1mm (±0.1mm)
- Material (top /bottom): TPU / PUR
- Surface finish (top /bottom): rough structure /fine structure
- Material of tension member: TPU
- Color (top /bottom): black / black
- Min. pulley diameter:10mm
- Tensile force for 8% elongation: 3.0 N/mm
- Recommended elongation: 3.0-8.0%
- Mass (belt weight): approx.1.3kg/m²
- Working temperature: -30 to +90℃
- Antistatic property: yes
- Standard belt width: 500mm
- Joining method: Thermofix & Flexproof (adhesive-free joint)
- Industry: photovoltaic, distribution center (logistics center), solar energy, electronics, semiconductor, printing & packaging, paper, postal
- Application: machine belting / elastic conveyor flat belt

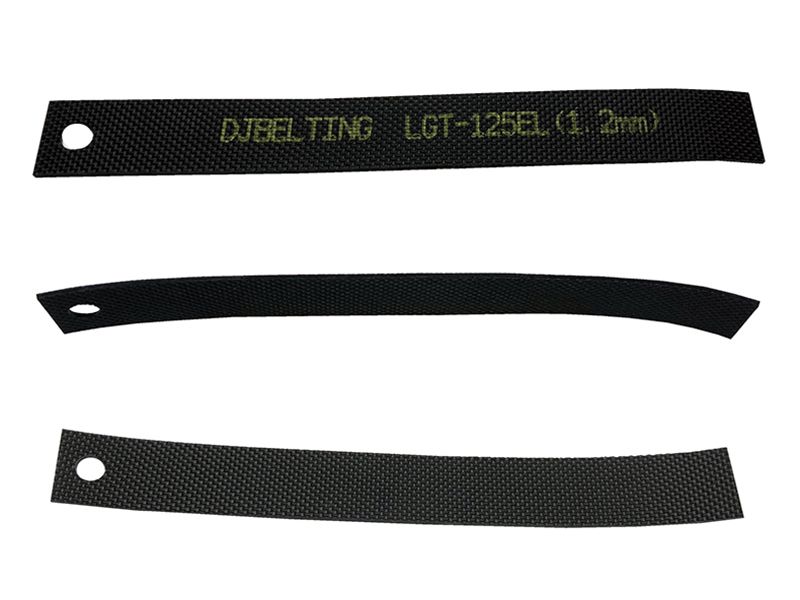

Elastic Machine Tape, LGT-125EL
Inquiry- Brand: UUITA
- Thickness: approx.1.2mm (±0.1mm)
- Material (top /bottom): TPU / PUR
- Surface finish (top /bottom): rough structure /fine structure
- Material of tension member: TPU
- Color (top /bottom): black / black
- Antistatic property: yes
- Min. pulley diameter:15 mm
- Tensile force for 8% elongation: 3.0N/mm
- Recommended elongation: 3.0-8.0%
- Mass (belt weight): approx.1.3kg/m²
- Working temperature: -30 to +90℃
- Standard belt width: 500mm
- Joining method: Thermofix & Flexproof (adhesive-free joint)
- Industry: photovoltaic, distribution center (logistics center), solar energy, electronics, semiconductor, printing & packaging, postal
- Application: machine belting / elastic conveyor flat belt

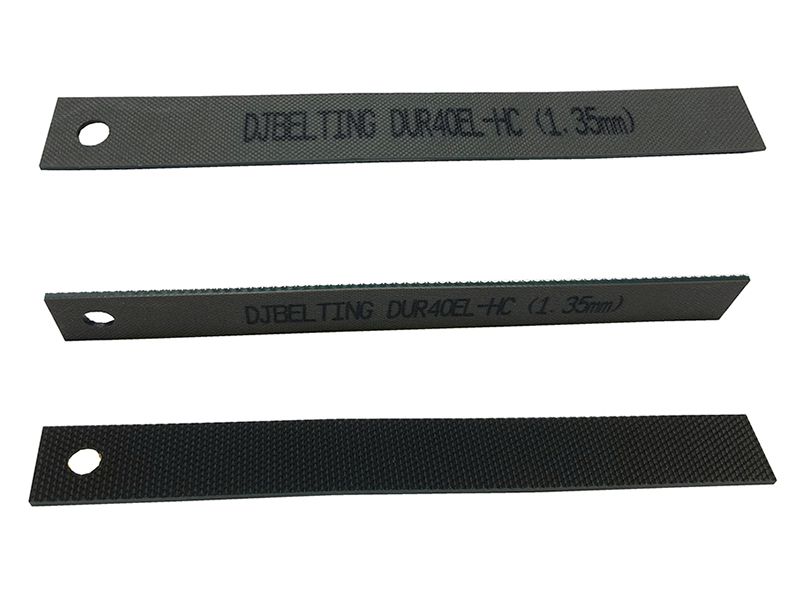

Elastic Machine Tape, DUR40EL-HC
Inquiry- Brand: UUITA
- Thickness: approx.1.35mm (±0.1mm)
- Material (top /bottom): PUR / Damid (thermoplastic elastomer)
- Surface finish (top /bottom): rough structure / rough structure
- Material of tension member: TPU
- Color (top /bottom): grey / black
- Antistatic property: yes
- Min. pulley diameter: 13mm
- Tensile force for 8% elongation: 6.4N/mm
- Recommended elongation: 3.0-8.0%
- Mass (belt weight): approx.1.5kg/m²
- Working temperature: -20 to +60℃
- Standard belt width: 500mm
- Joining method: Flexproof (adhesive-free joint) & Thermofix
- Industry: photovoltaic, solar energy, electronics, semiconductor, printing & packaging, paper, postal
- Application: machine belting / elastic conveyor flat belt / folder-gluer polyamide plate based flat belt / pallet-type conveyor belt

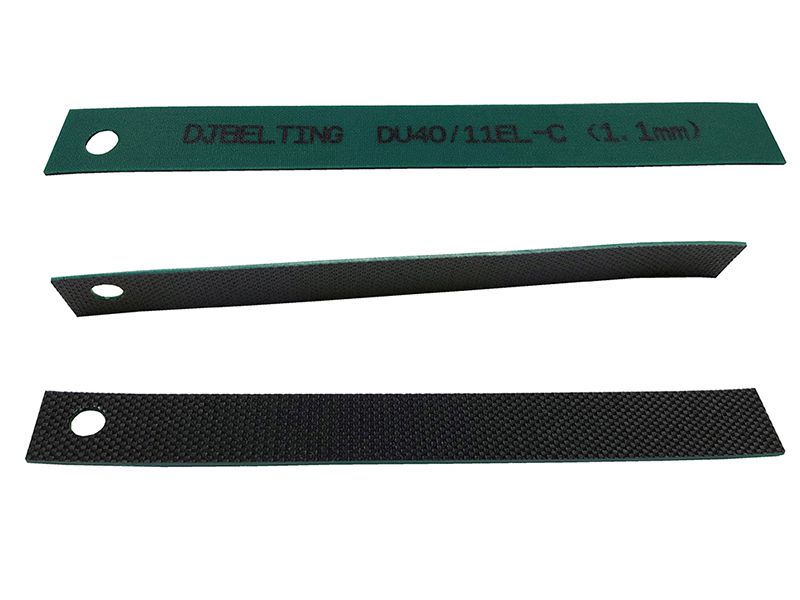

Elastic Machine Tape, DU40/11EL-C
Inquiry- Brand: UUITA
- Thickness: approx.1.1mm (±0.1mm)
- Material (top /bottom): TPU / PUR
- Surface finish (top /bottom): rough structure /fine structure
- Material of tension member: TPU
- Color (top /bottom): dark green / black
- Min. pulley diameter:14mm
- Tensile force for 8% elongation: 6.4 N/mm
- Recommended elongation: 3.0-8.0%
- Mass (belt weight): approx.1.2kg/m²
- Working temperature: -20 to +60℃
- Conductivity /antistatic property: yes
- Standard belt width: 500mm
- Joining method: Thermofix & Flexproof (adhesive-free joint)
- Industry: photovoltaic, solar energy, electronics, semiconductor, printing & packaging, paper, postal
- Application: machine belting/elastic conveyor flat belt

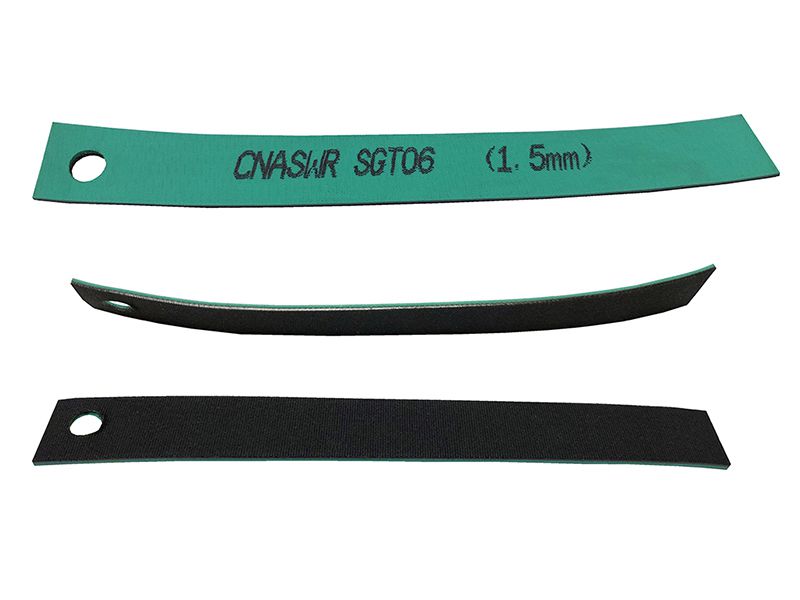

Machine Tape, SGT06
Inquiry- Brand: UUITA
- Thickness: approx.1.5mm (±0.1mm)
- Material (top /bottom): polyamide fabric / NBR elastomer
- Surface finish (top /bottom): fabric texture / fine structure
- Material of tension member: polyamide foil
- Color (top /bottom): black / bright green
- Min. pulley diameter: 15mm (Thermofix)
- Tensile force for 1% elongation: 4.0 N/mm
- Recommended elongation: 2.0-3.0%
- Mass (belt weight): approx.1.6kg/m²
- Working temperature: -20 to +100℃
- Antistatic property: yes
- Standard belt width: 500mm
- Joining method: Thermofix
- Industry: electronics, printing, paper
- Application: machine belting / polyamide plate based flat belt
Machine Tape, DGG E1-HC
Inquiry- Brand: UUITA
- Thickness: approx.1.0mm (±0.1mm)
- Material (top /bottom): NBR elastomer / NBR elastomer
- Surface finish (top /bottom): fine structure / fine structure
- Material of tension member: polyester fabric
- Color (top /bottom): black / black
- Min. pulley diameter:10mm (Flexproof), 15mm (Thermofix)
- Tensile force for 1% elongation: 8.0 N/mm
- Recommended elongation: 0.3-2.0%
- Mass (belt weight): approx.1.3kg/m²
- Working temperature: -20 to +60℃
- Antistatic property: yes
- Standard belt width: 500mm
- Joining method: Flexproof (adhesive-free joint) & Thermofix
- Industry: electronic, conveyer belt scale, textile (comber belt)
- Application group: machine belting

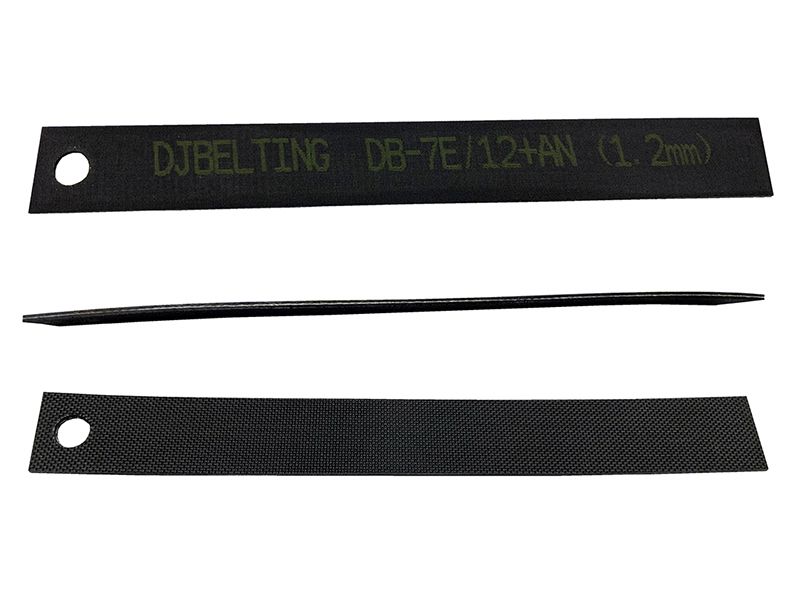

Machine Tape, DB-7E/12+AN
Inquiry- Brand: UUITA
- Thickness: approx.1.2mm (±0.1mm)
- Material (top /bottom): TPU / TPU
- Surface finish (top /bottom): rough structure / fine structure
- Material of tension member: PET
- Color (top /bottom): black / black
- Min. pulley diameter:15mm (Flexproof), 25mm (Thermofix)
- Tensile force for 1% elongation: 8.0 N/mm
- Recommended elongation: 0.3-2.0%
- Working temperature: -20 to +70℃
- Mass (belt weight): approx. 1.5kg/m²
- Antistatic property: yes
- Standard belt width: 500mm
- Joining method: Flexproof (adhesive-free joint) & Thermofix
- Industry: electronics, photovoltaic solar energy, printing
- Application: machine belting / TPU transmission belt

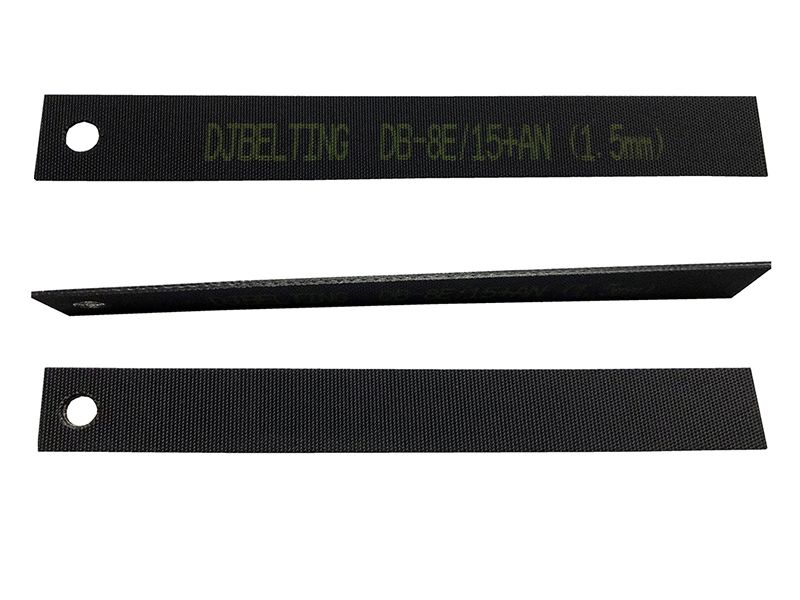

Machine Tape, DB-8E/15+AN
Inquiry- Brand: UUITA
- Thickness: approx.1.5mm (±0.1mm)
- Material (top /bottom): TPU / TPU
- Surface finish (top /bottom): rough structure / rough structure
- Material of tension member: PET
- Color (top /bottom): black / black
- Min. pulley diameter:20mm (Flexproof), 30mm (Thermofix)
- Tensile force for 1% elongation: 8.0 N/mm
- Recommended elongation: 0.3-2.0%
- Working temperature: -20 to +70℃
- Mass (belt weight): approx.1.7kg/m²
- Antistatic property: yes
- Standard belt width: 500mm
- Joining method: Flexproof (adhesive-free joint) & Thermofix
- Industry: electronics, photovoltaic solar energy, printing
- Application: machine belting / TPU transmission belt

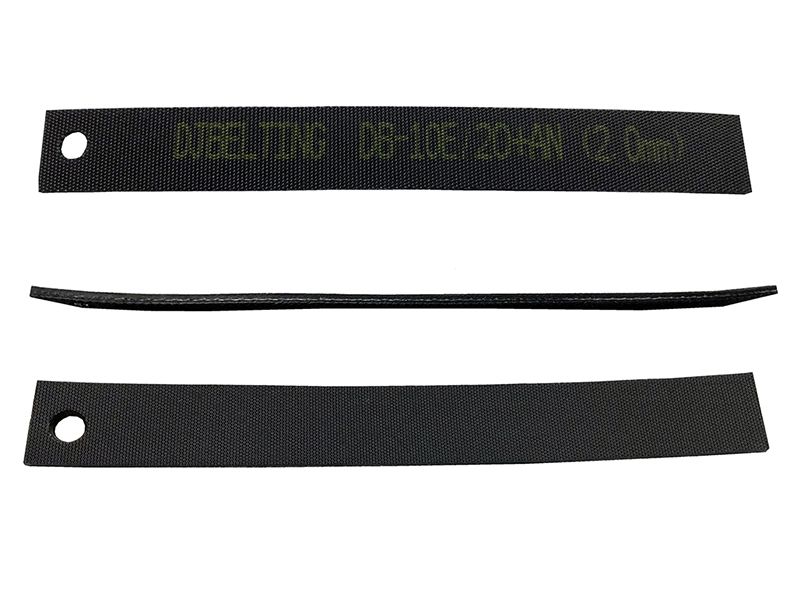

Machine Tape, DB-10E/20+AN
Inquiry- Brand: UUITA
- Thickness: approx.2.0mm (±0.1mm)
- Material (top /bottom): TPU / TPU
- Surface finish (top /bottom): rough structure / rough structure
- Material of tension member: PET
- Color (top /bottom): black / black
- Antistatic property: yes
- Min. pulley diameter: 30mm (Flexproof), 50mm (Thermofix)
- Tensile force for 1% elongation: 10.0 N/mm
- Recommended elongation: 0.3-2.0%
- Mass (belt weight): approx. 2.4kg/m²
- Working temperature: -20 to +70℃
- Standard belt width: 500mm
- Joining method: Flexproof (adhesive-free joint) & Thermofix
- Industry: electronics, photovoltaic solar energy, printing
- Application: machine belting / TPU transmission belt
Get in Touch
About Dongji
Dongji owns professional large-scale manufacturing plant and warehouse for polyurethane flat belts and polyamide power transmission belts. Ingenious manufacturing to the highest international standards has been central to Dongji's strategy since its inception. We are the first domestic industrial belt manufacturer using thermoplastic polyurethane (TPU) and nanomaterials to produce high-performance conveyor belts. The features of produced flat belts include energy saving, burr-free edge, antistatic property, high conductivity and good resilience, as well as outstanding resistance to abrasion, bending, chemicals, oil, and high or low temperatures, enabling the industrial belts versatile enough to accommodate the individual production process of diverse automatic manufacturing equipment.
Our Products
-
- Power Transmission BeltsPower transmission belts are mechanical elements employed in many industrial processes to efficiently transmit power or movement from the powered drive pulley to one or several driven pulleys. Dongji offers a variety of power transmission belts that are tailor-made to suit customers' specific needs of application or machine designs in different industries.Read More
-
- Machine Tapes / BeltsAt Dongji, you can find a comprehensive range of machine tapes and belts that are featured by energy saving, burr-free edge, antistatic property, high conductivity and good resilience, as well as outstanding resistance to abrasion, bending, chemicals, oil, and high or low temperatures.Read More
-
- Conveyor Flat BeltsWith nearly 2 decades of experience in the development and manufacture of industrial conveyor belt, we can manufacture our flat belts with different materials such as thermoplastic polyurethane (TPU), polyurethane (PUR), nitrile butadiene rubber (NBR) and polyamide (PA) to meet the specific needs of our customers.Read More
